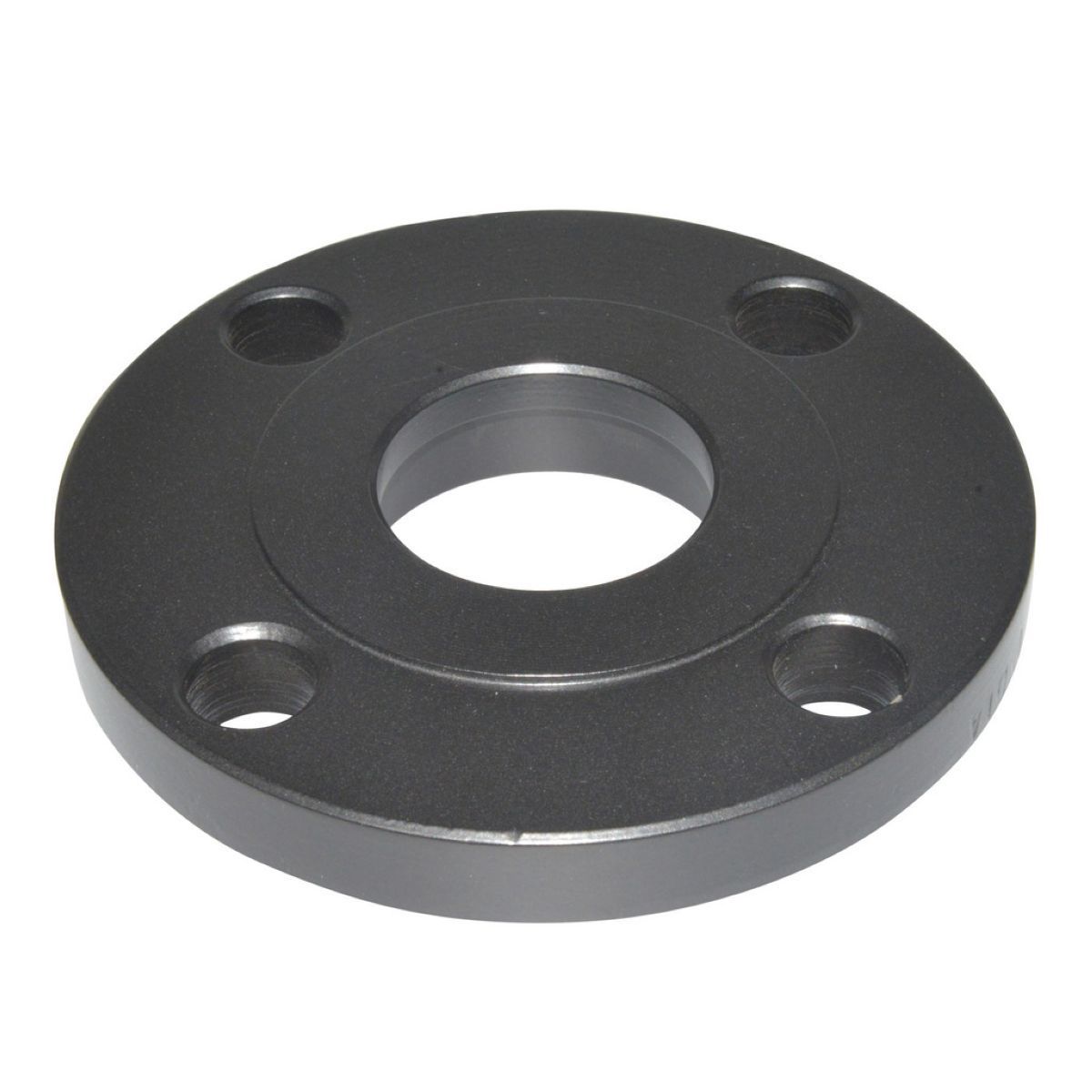

Socket Weld Flange | A105 | SCH: XH | Flat Face | Domestic

Product Features:

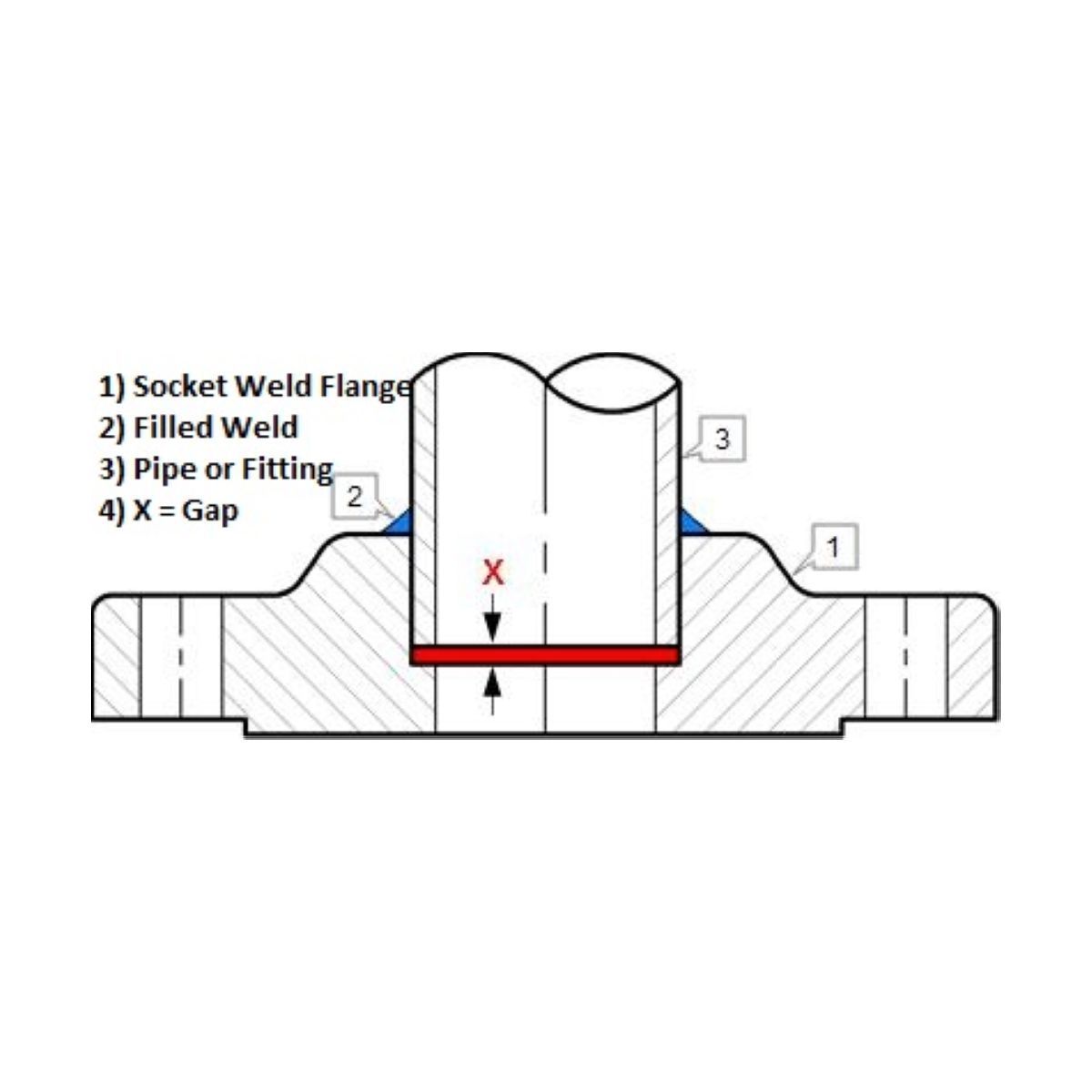

Socket Weld Flanges were initially developed for use on small-size high pressure piping. The connection is made as the pipe sits inside of the cupped inlet or "Socket" of the flange. A fillet weld at the outside of the flange binds the two pieces and ensures a seal.

Additional Flange Information

Materials:

A105 - The standard forged carbon steel piping components for ambient and high temperature / pressure systems

Additional A105 Material Information

Size & Dimensions:

Size & Dimension Table for Flanges

Sku: DFL-SW-FF-A105-150-XH-0050
Vendor: WeldBend
Weight: 2.0 lb

All Domestic products are melted and manufactured in USA.

All Dresser Products are domestically manufactured by GE / Dresser at the plant in Pennsylvania, USA.

All Import Valves, Hammer Unions, Y-Strainers & Frac Tank Supplies are assembled and tested in USA with components made in China

All Import Buttweld, Socketweld & Threaded Fittings are made in China/Taiwan/India

All Import Flanges are made in China/Taiwan/India

All materials are ASTM / ASME equivalent. Visit our Knowledge Central page for more information on material grades, material chemistry and ASTM, ASME & ANSI myth.

If you have any question, call 281.516.8100 or email sales@trupply.com.
