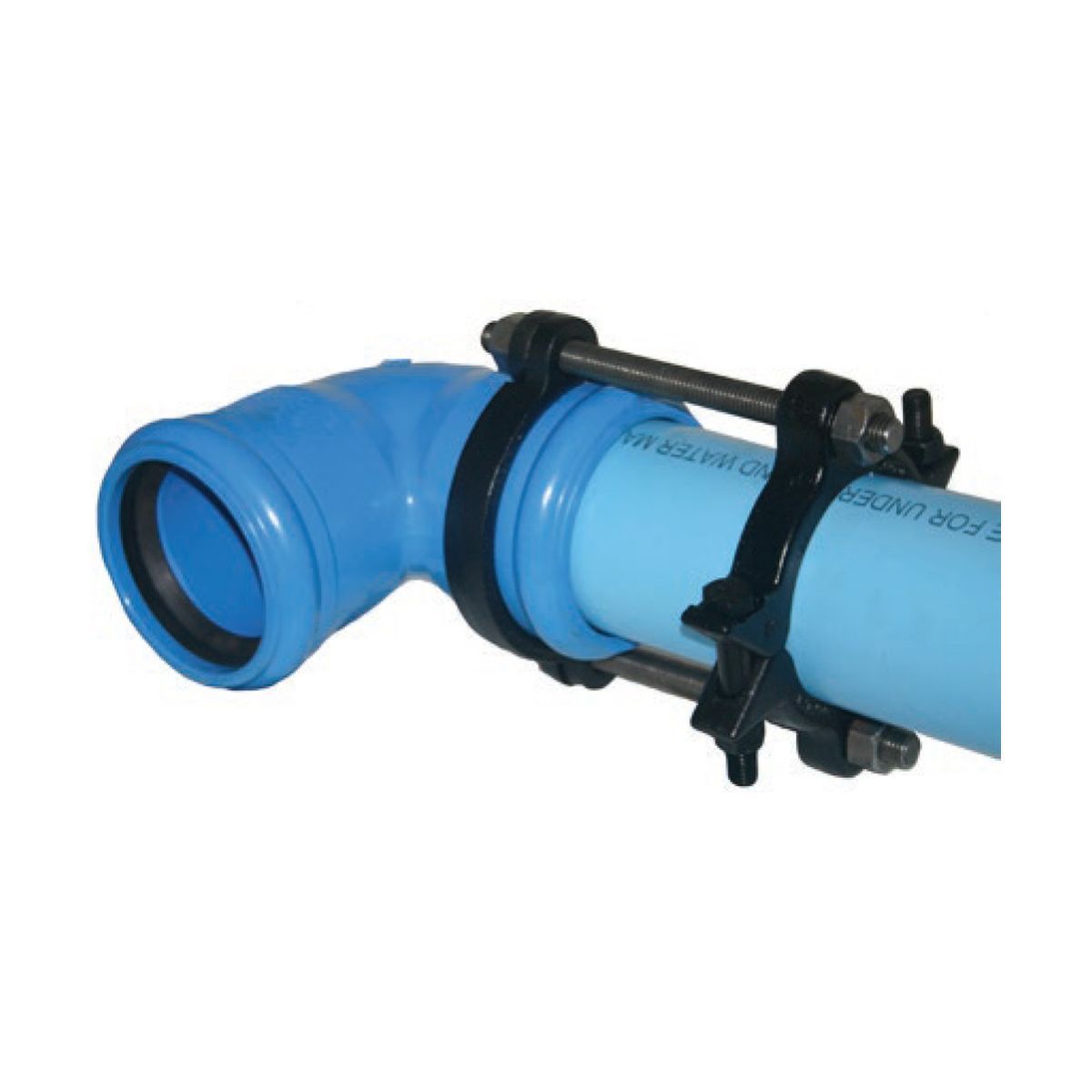

Style 101 | Serrated Joint Restraint | Bell & Spigot PVC Joints

Product Description
Nominal Size
OD Range
Type
$ 234.10
Maximum quantity available reached.

Style 111 | CamLock Joint Restraints

Product Features:

  • Cam-Locks are mechanical joint restraint glands with multiple independent single-tooth cam-action wedges designed to restrain a fitting on a piece of pipe.
  • Application Restraining pipe ends in mechanical joint fittings.
  • Fewer wedges for time-saving installations
  • Breakaway nuts twist off at approximately 45-60 ft.-lbs. leaving cam engaged with a pipe.
  • Lower torque requirement to fully actuate bolts
  • Multi-Seal MJ Gasket available in 4-12. Fits IPS or DI sized pipe.
  • Corrosion resistant
  • Secondary hex shank for easy removal and re-installation

Style 111 Portwest Spec Sheet

Materials:

  • GLAND 65-45-12 Ductile Iron (ASTM A536)
  • WEDGES Single Tooth Ductile Iron heat treated for Ductile Iron pipe applications
  • ACTUATING BOLTS 60-40-18 Ductile Iron (ASTM A536)
  • BREAKAWAY NUTS Carbon Steel
  • FINISH Gland is Flexi-Coat Epoxy per ANSI/AWWA C213. Wedges and Actuating Bolts are E-coated Epoxy.
  • A serrated restraint used for MJ type fittings.
  • Application For restraining pipe MJ fittings.
  • Recessed shoulders allow for single wrench installation
  • Compatible with standard mechanical joint and some push-on style fittings
  • Maintains full pipe deflection
  • 360 of pipe support provided - uncompromised restraint
  • Adaptable for new and/or existing pipeline applications
  • Easily installs outside the trench
  • Eliminates need for costly concrete thrust blocks

Materials:

  • RESTRAINER 65-45-12 Ductile Iron (ASTM A536)
  • T-BOLTS & HEX NUTS High strength low alloy
  • CLAMPING BOLTS SAE Grade 5 ASTM A449 Type 1 or approved equivalent
  • FINISH Shop CoatA serrated restraint used for MJ type fittings. Application For restraining pipe MJ fittings. Recessed shoulders allow for single wrench installation Compatible with standard mechanical joint and some push-on style fittings Maintains full pipe deflection 360 of pipe support provided - uncompromised restraint Adaptable for new and/or existing pipeline applications Easily installs outside the trench Eliminates need for costly concrete thrust blocks Materials Specifications (subject to change) RESTRAINER 65-45-12 Ductile Iron (ASTM A536) T-BOLTS & HEX NUTS High strength low alloy CLAMPING BOLTS SAE Grade 5 ASTM A449 Type 1 or approved equivalent FINISH Shop Coat
Sku: 165-04800000-000
Vendor: Smith Blair
Weight: 15.6 lb

All Domestic products are melted and manufactured in USA.

All Dresser Products are domestically manufactured by GE / Dresser at the plant in Pennsylvania, USA.

All Import Valves, Hammer Unions, Y-Strainers & Frac Tank Supplies are assembled and tested in USA with components made in China

All Import Buttweld, Socketweld & Threaded Fittings are made in China/Taiwan/India

All Import Flanges are made in China/Taiwan/India

All materials are ASTM / ASME equivalent. Visit our Knowledge Central page for more information on material grades, material chemistry and ASTM, ASME & ANSI myth.
