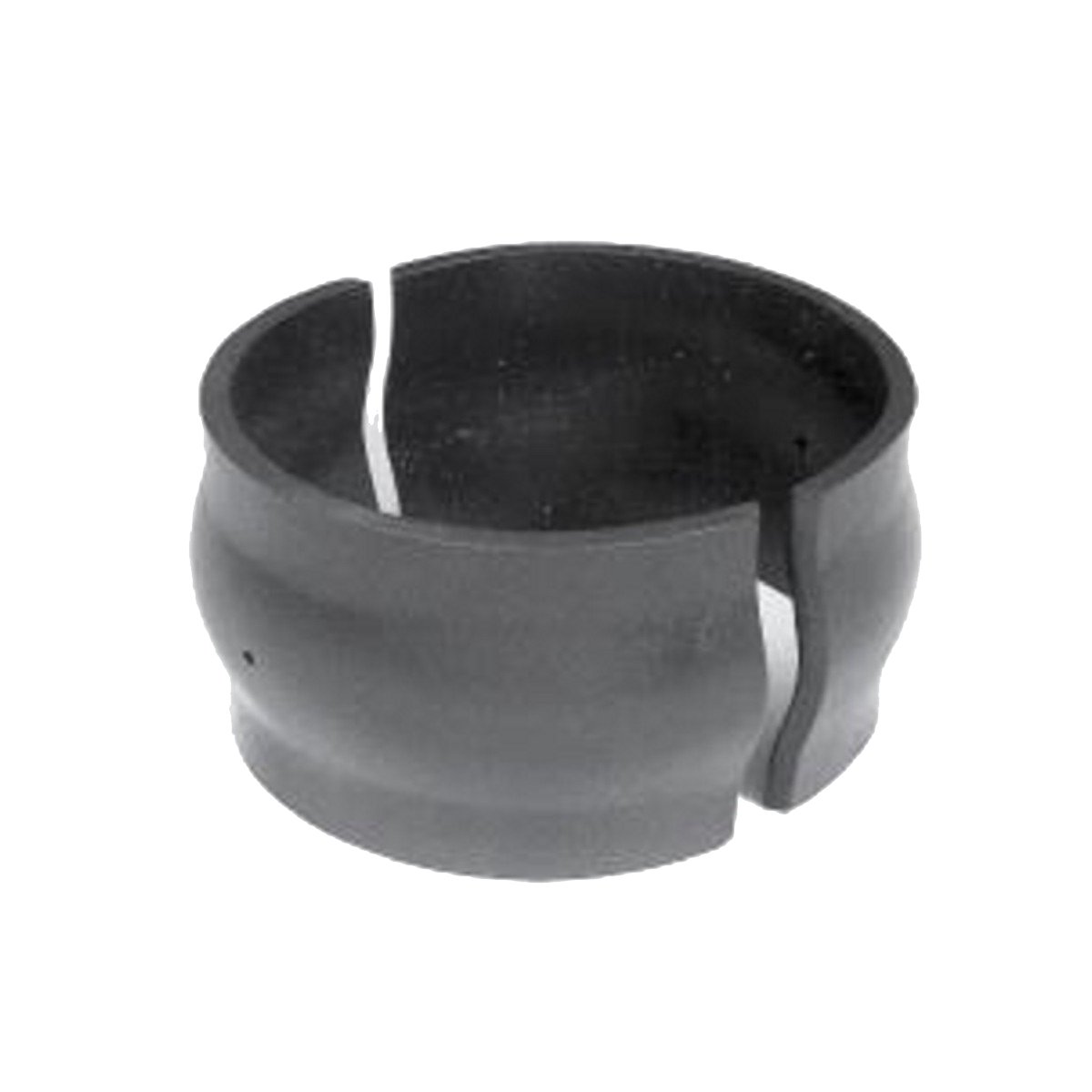

Style 110 | Reinforcing Sleeve

Product Description

Product Features:

Pipeline engineers assure the safety of field joints by installing Dresser Style 110 Reinforcing Sleeves on welded joints where special precautions are required. Style 110 sleeves can be used on defective ‘trouble spots’ on piping systems at highway, river and railroad crossings, at over bends and tie-ins, in marshy ground, near buildings and other places where special precautions are necessary.

  The Style 110 sleeve lends itself to field welding without preheating, using ordinary field welding procedures. All sleeves are factory prepared with standard welding bevel, machine flame cut for uniformity and ease of welding, and come with a drilled vent hole to preclude pressure build up between sleeve and pipe.

  Built to rigid Dresser specifications, Style110 sleeves have minimum yield strengths of 50,000 psi and an ultimate strength of 70,000 psi. Style 110 sleeves are supplied in all sizes, lengths and thicknesses as shown in charts. Larger sizes and lengths available upon request.

*NOTE: Style 115 full-encirclement weld-over sleeves are available in 3/8” and 1/2” thicknesses for larger diameters and lengths up to 10 feet. Consult factory for your special project requirements.

Material:

Body: High strength, low carbon steel meeting ASTM A572 GR 50/ ASTM

Yield Strength: 50,000 PSI Min.

Temp. Ratings: -20° to +150°F

Nominal Size (inch)
$ 335.47

All Domestic products are melted and manufactured in USA.

All Dresser Products are domestically manufactured by GE / Dresser at the plant in Pennsylvania, USA.

All Import Valves, Hammer Unions, Y-Strainers & Frac Tank Supplies are assembled and tested in USA with components made in China

All Import Buttweld, Socketweld & Threaded Fittings are made in China/Taiwan/India

All Import Flanges are made in China/Taiwan/India

All materials are ASTM / ASME equivalent. Visit our Knowledge Central page for more information on material grades, material chemistry and ASTM, ASME & ANSI myth.

If you have any question, call 281.516.8100 or email sales@trupply.com.
