Instrumentation Valves

Instrumentation Valves for Industrial Applications

Instrumentation valves are used to control, isolate and regulate the flow of fluids in precision systems such as oil and gas plants, chemical processing units and instrumentation panels. These valves are designed to handle high pressures and temperatures while maintaining accurate flow control, making them an essential part of industrial measurement and control setups across the USA.

Design and Construction

Instrumentation valves are typically made from stainless steel or other durable alloys to resist corrosion and maintain integrity under demanding service conditions. Common configurations include needle valves, ball valves, check valves and manifold valves - each serving a specific control function in pipelines or instrumentation assemblies. The compact design and precision threading allow for easy installation and leak-free performance in both liquid and gas service.

Common Types of Instrumentation Valves

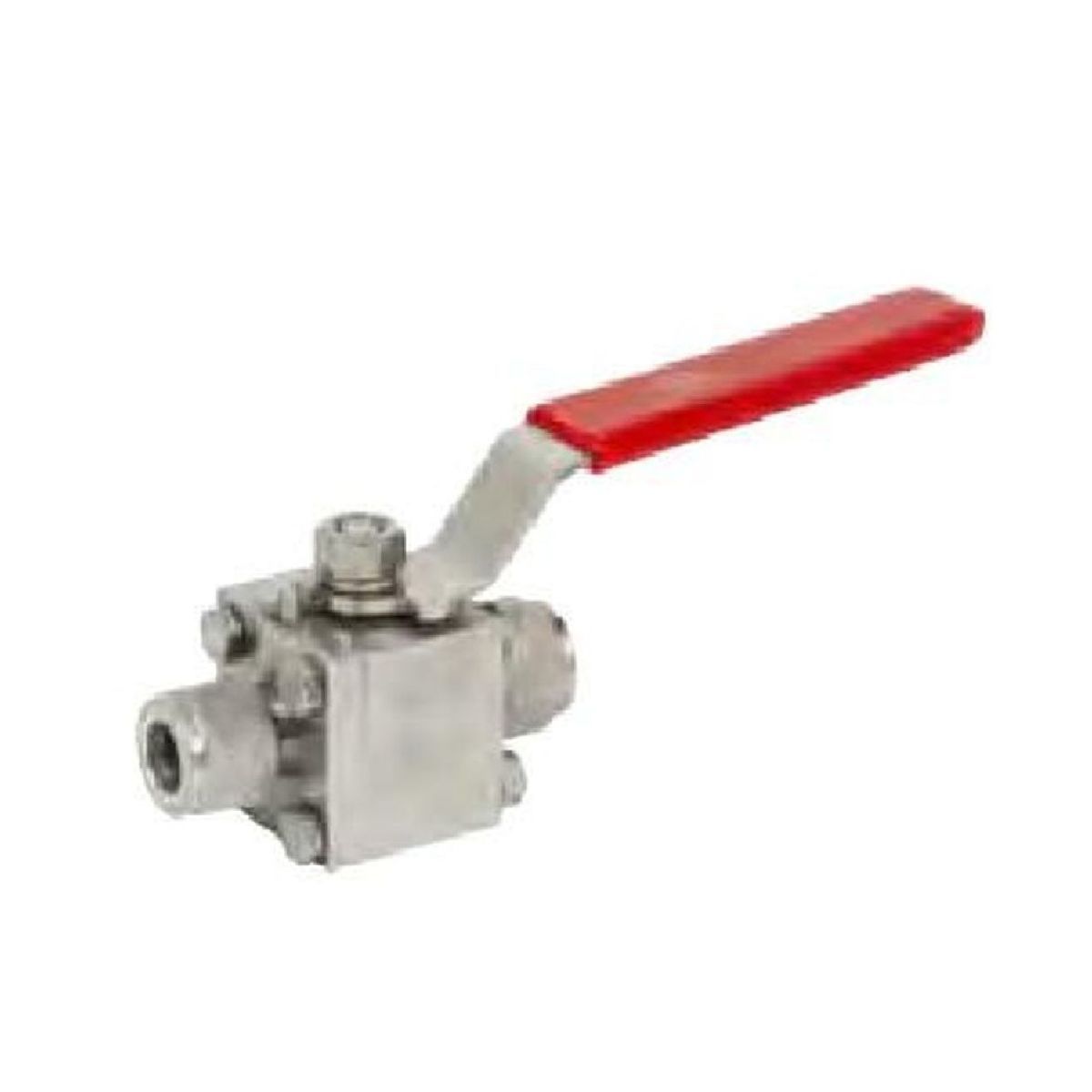

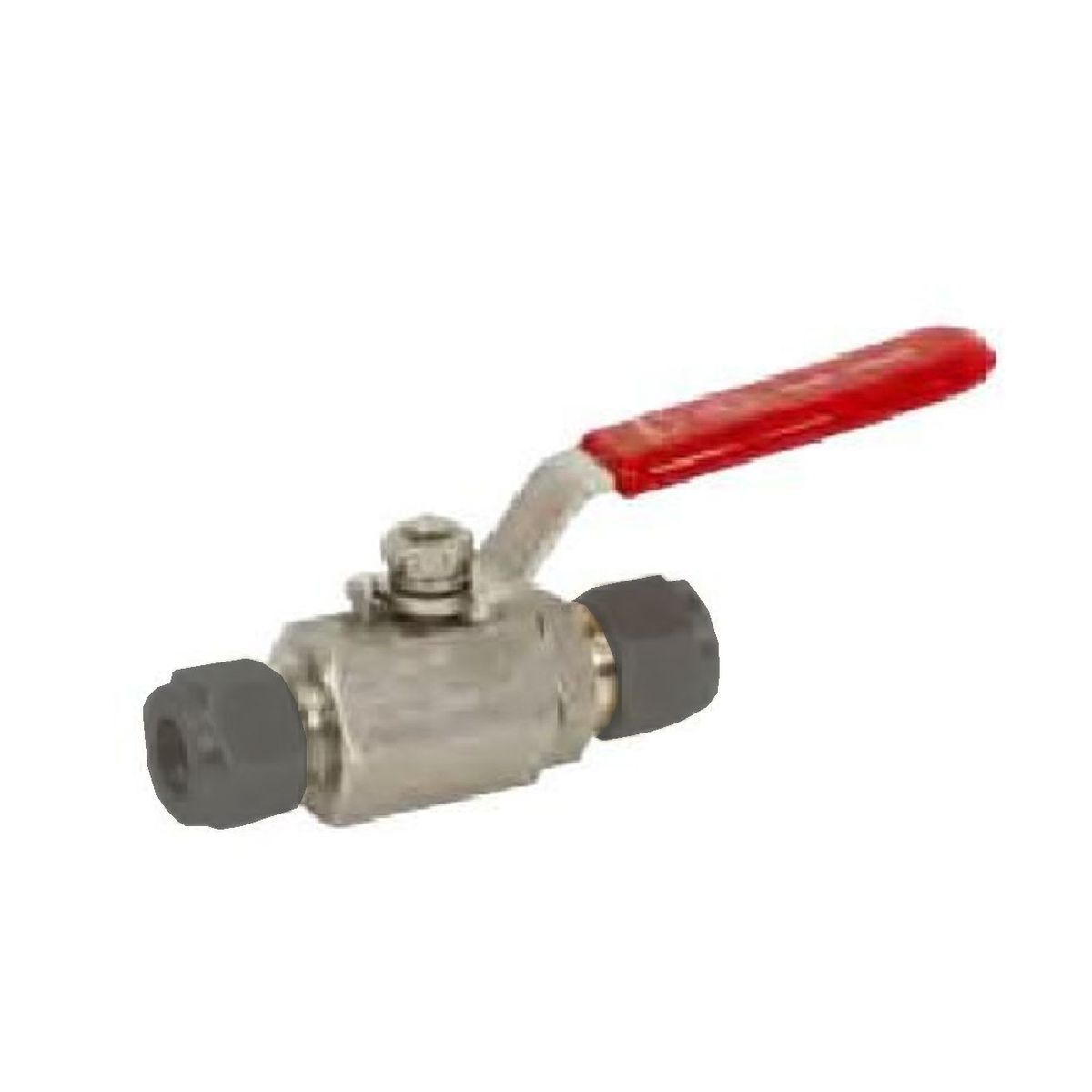

• Instrumentation Ball Valves: Designed for quick shut-off or flow control with a simple quarter-turn operation. These are widely used in sampling systems, process lines and control panels.

• Needle Valves: Provide fine flow adjustment in small-diameter piping or tubing systems. Ideal for maintaining accurate flow rates in pressure and temperature measurement setups.

• Manifold Valves: Used in conjunction with pressure gauges and transmitters, allowing for isolation, equalization and venting functions.

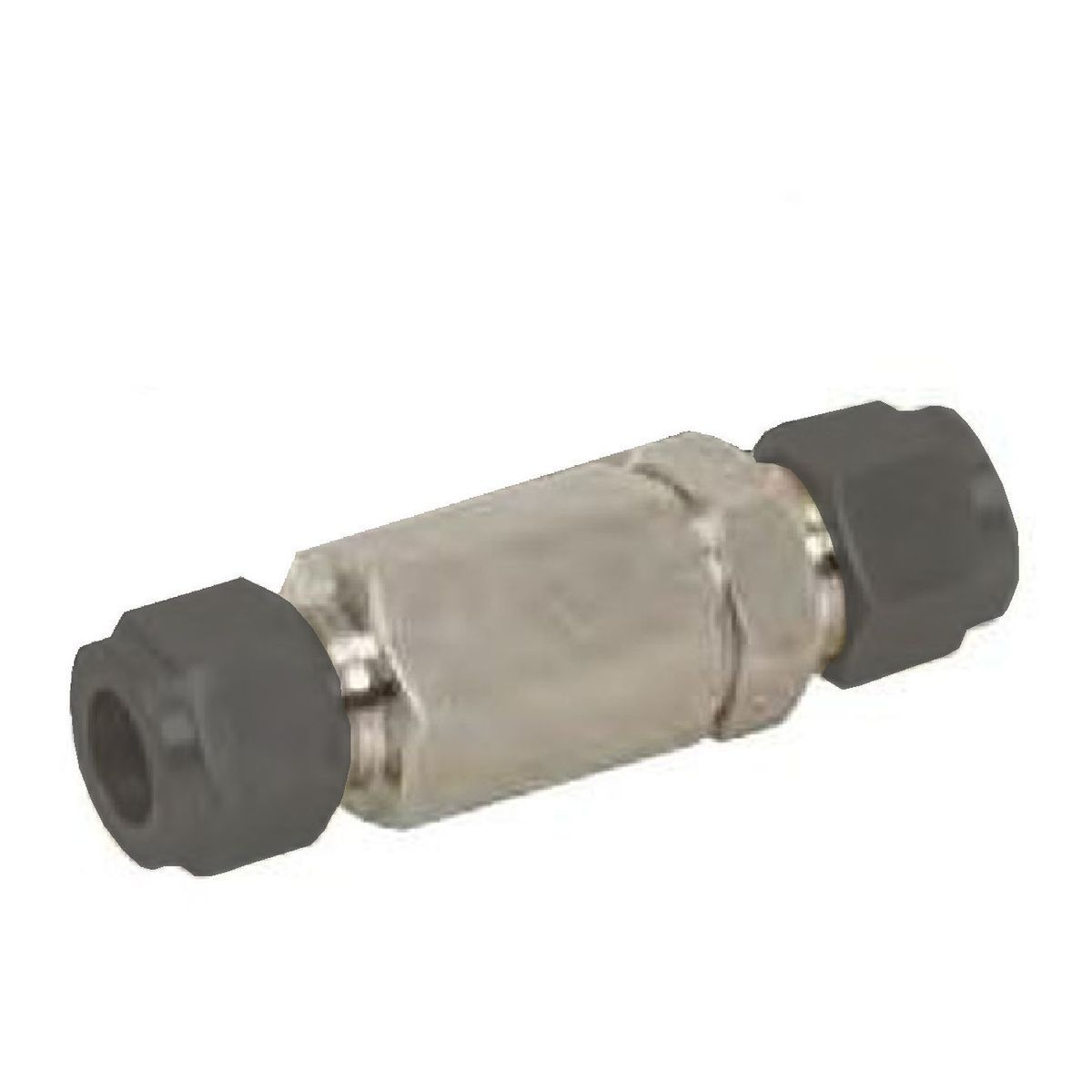

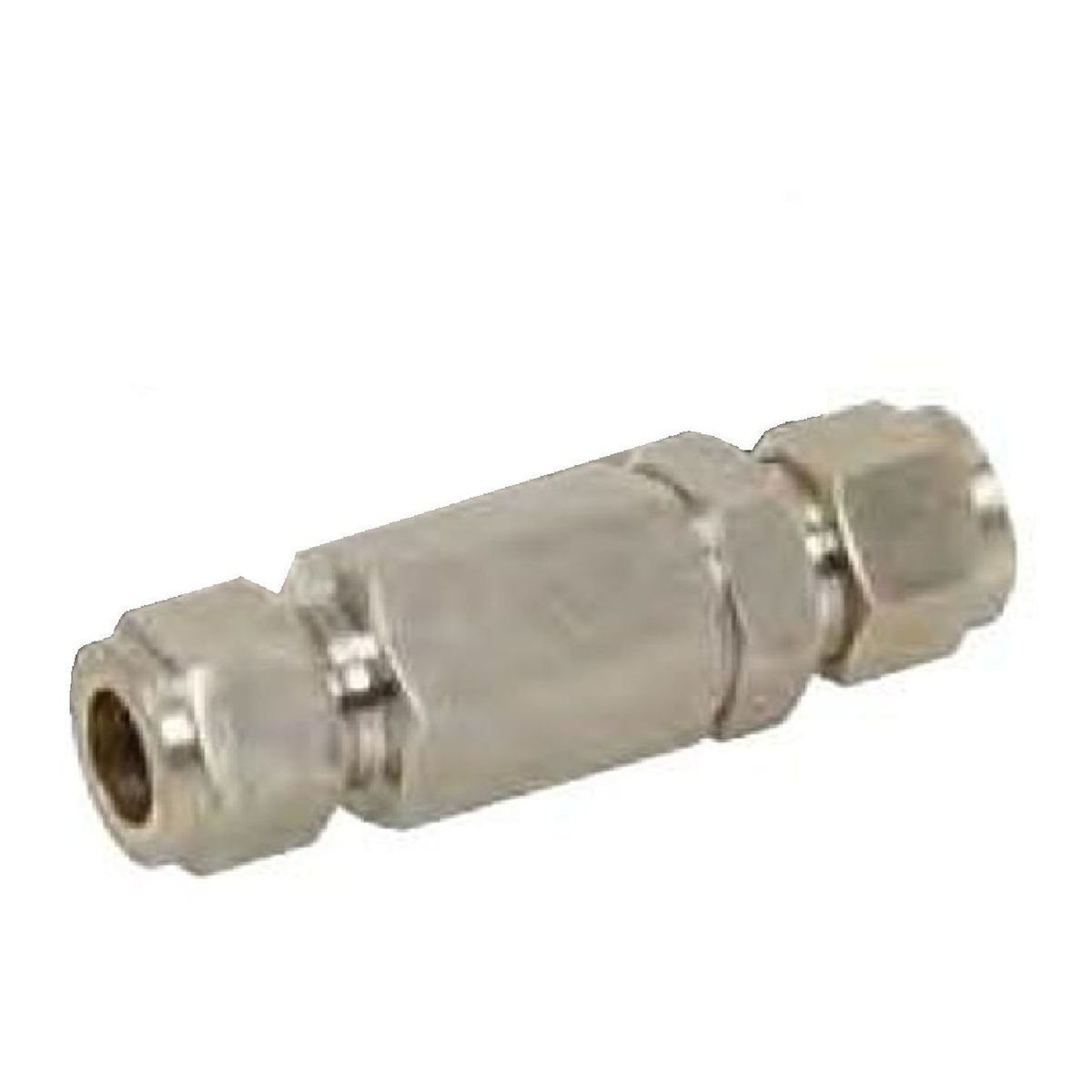

• Check Valves: Prevent backflow in sensitive instrumentation lines to maintain pressure stability and protect measuring instruments.

Applications and Industry Use

Instrumentation valves are widely used across industries such as petrochemical, power generation, water treatment and process automation. Their precise operation and durable construction make them suitable for controlling air, gas, oil, steam and other media where accuracy and reliability are critical.

Trupply’s Instrumentation Valve Selection

Trupply offers a collection of instrumentation valves and fittings suitable for a range of industrial applications. Customers can explore different models, materials and connection types to match their system requirements. Each valve in our instrumentation valves catalog is sourced from trusted manufacturers, built to deliver long-term performance in demanding environments.
