Cam-Lock Joint Restraint on CS - Model 120

Product Description
Nominal Size (in)
O.D Range (in)
$ 182.50
Maximum quantity available reached.

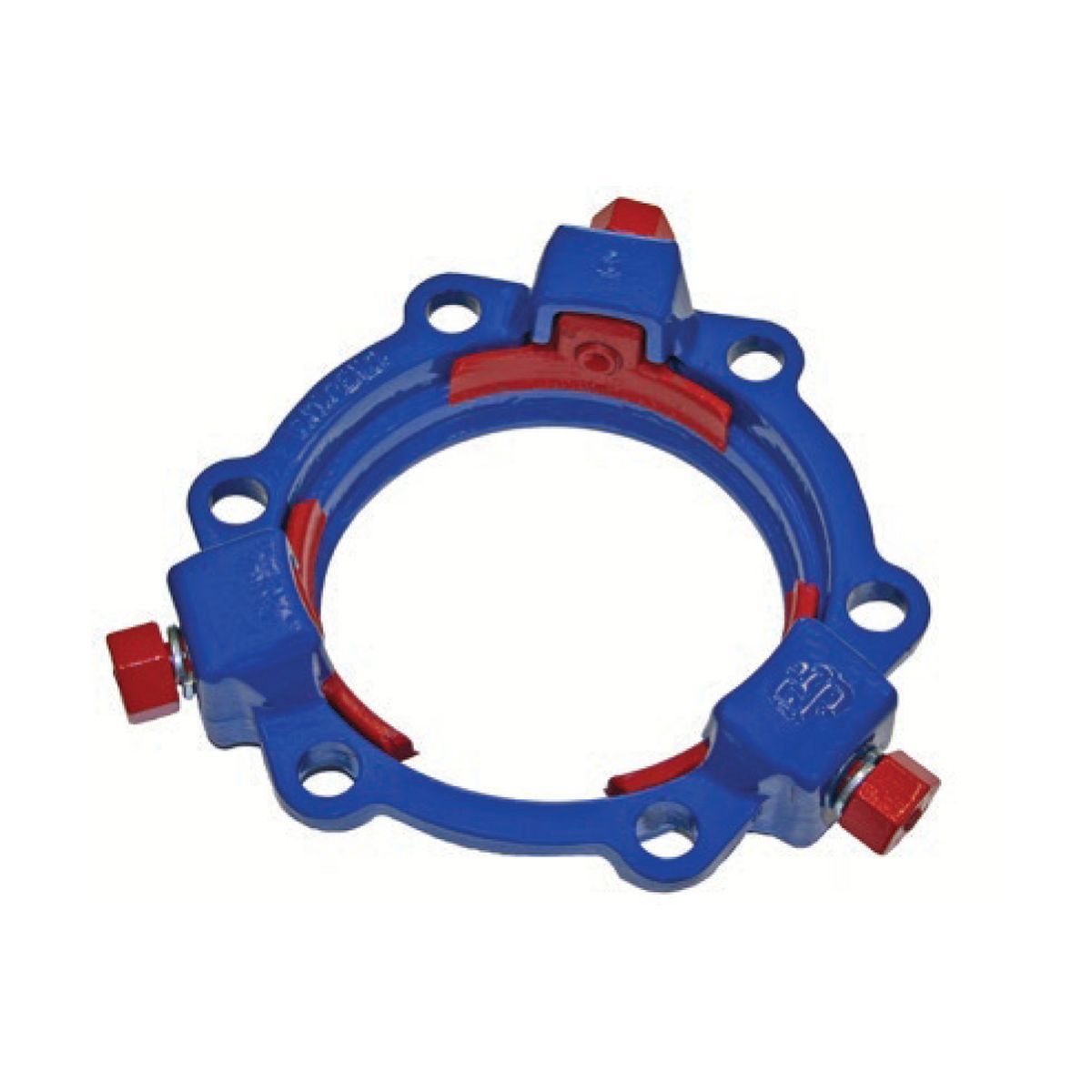

Cam-Lock Joint Restraint on Carbon Steel Pipe with Multi-Seal MJ Gasket - Model 120

Product Descriptions: Cam-Locks are mechanical joint gland with multiple and independent single-tooth cam-action wedges designed to restrain a fitting on a piece of pipe.
Application: Restraining pipe ends on mechanical joint fittings.
Key Features:
• Fewer wedges for time-saving installations
• Lower torque requirement to fully actuate bolts
• Multi-Seal MJ Gasket available in 4"-12." Fits IPS or DI size pipe.
• Corrosion resistant
• Secondary hex shank for easy removal and re-installation
• The 120 Cam-Locks have been tested without failure according to ASTM F 1674-05 on sizes 4"-12" DR 18 PC 150 pipe, conforming to the requirements of AWWA C900
Materials Specifications (subject to change):
GLAND: 65-45-12 Ductile Iron (ASTM A536)
WEDGES: Single Tooth Ductile Iron
ACTUATING BOLTS: 60-40-18 Ductile Iron (ASTM A536)
BREAKAWAY NUTS: Carbon Steel
FINISH: Gland is Flexi-Coat® Epoxy per AWWA C213. Wedges and Actuating Bolts are E-coated Epoxy
Sku: 111-04500480-000
Vendor: Smith Blair

All Domestic products are melted and manufactured in USA.

All Dresser Products are domestically manufactured by GE / Dresser at the plant in Pennsylvania, USA.

All Import Valves, Hammer Unions, Y-Strainers & Frac Tank Supplies are assembled and tested in USA with components made in China

All Import Buttweld, Socketweld & Threaded Fittings are made in China/Taiwan/India

All Import Flanges are made in China/Taiwan/India

All materials are ASTM / ASME equivalent. Visit our Knowledge Central page for more information on material grades, material chemistry and ASTM, ASME & ANSI myth.

If you have any question, call 281.516.8100 or email sales@trupply.com.
