**Please note that pictures may not properly represent actual products**

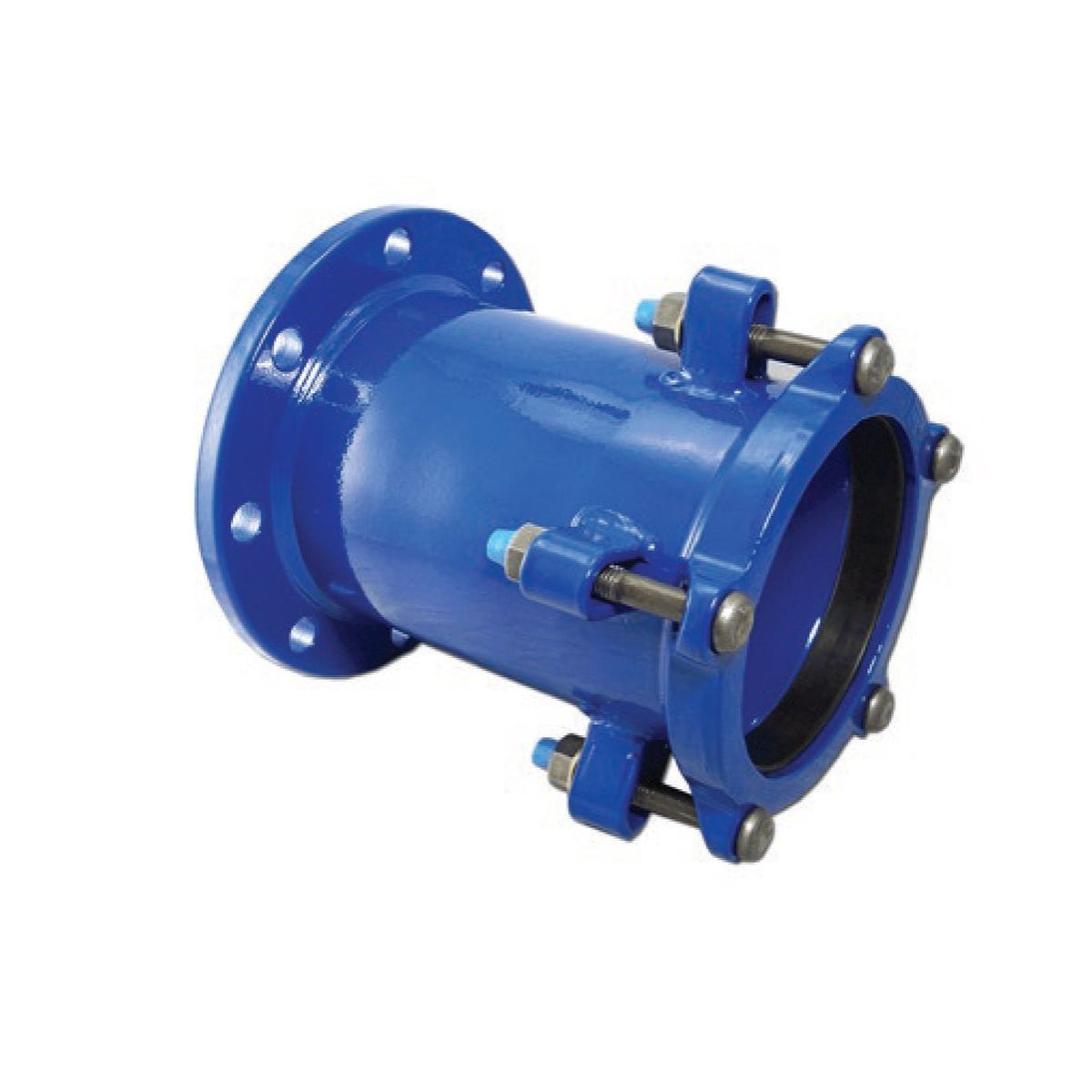

Style 913 | Flanged Coupling Adapter

Nominal Size: 3 in
OD Range: 3.44 in to 3.56 in
Bolts and Nuts Type: Alloy

Product variant with selected options does not exist!

Price
$ 554.55
SKU: 913-03500300-003
Weight: 18.0 lb

Style 913 | Flanged Coupling Adapter



Typically ships in 7-10 business days



Product Features:

  • Fabricated Steel flanged coupling adapter
  • Application For joining plain end pipe to flanged valves and fittings.
  • Meets applicable AWWA C219 Standards
  • Pressure rated at 150 PSI +/- working pressure according to design
  • Available in straight (913) or reducing (914) styles to fit your needs
  • Provides a quick means of removing and reinstalling flanged fitting already in line Optional anchor studs provide joint restraint capability to secure the plain pipe end
  • No need for field fabrications. FCAs work with plain-end pipe to make the flanged connection
  • Coupling end helps relieve stress absorb vibration and accept deflection in the piping system

Style 913 Smith Blair Spec Sheet

Materials:

  • BODY Steel ASTM A53 ASTM A283 Gr. C or Carbon Steel having a minimum yield of 30000 PSI
  • FLANGE 3 thru 5 Sizes ANSI 150 lb. flat face. 6 and above AWWA C207 Class D ANSI 150 lb. drilling
  • FOLLOWER 3 thru 12 sizes‚¬?Ductile Iron ASTM A536. 14 and above heavy rolled Steel AISI C1020
  • GASKET Nitrile (Buna N) Certified to NSF/ANSI 61. Compounded to produce superior storage and performance characteristics while resisting water acids alkalies most (aliphatic) hydrocarbon fluids and many other chemicals
  • Temperature Range -20F to +180F
  • BOLTS & NUTS High strength low alloy Steel with heavy semi-finished hexagon nuts to AWWA C-111 (ANSI-A21.11) standards
  • FINISH Flexi-Coat Fusion-Bonded epoxy per AWWA C213
  • Working Pressure Up to 150 PSI depending on size and design
  • Pipe Applications Steel Cast Iron Ductile Iron Abestos Cement PVC
General Information

Q) When will my item ship?
A) Most items ship with-in 24-48 hrs.

Q) When will I get the tracking number?
A) Trupply ship items from multiple warehouses. Tracking number is available 24 hrs after shipping.

Q) What is your return policy?
A) Trupply offers 100% refund for unused items with-in 30 days.

Q) How can I get MTR?
A) MTRs are provided upon request. You can mention it at the time of order under "Order Notes" or email customer service.

Q) Who pays for shipping?
A) The buyer

Q) Where is Trupply located?
A) Trupply's main warehouse and office is in Houston TX.

Q) What are your customer service hours?
A) Monday to Firday 8 AM to 5 PM Central Time.

Q) I have more technical questions.
A) Email or call us for further help.

Country of Origin

Domestic Products Manufactured or Assembled in USA

Technical Specifications
Test Report, Data Sheet And Drawing

Coming Soon
