Style 80 | Split Sleeve

Product Description

Product Features:

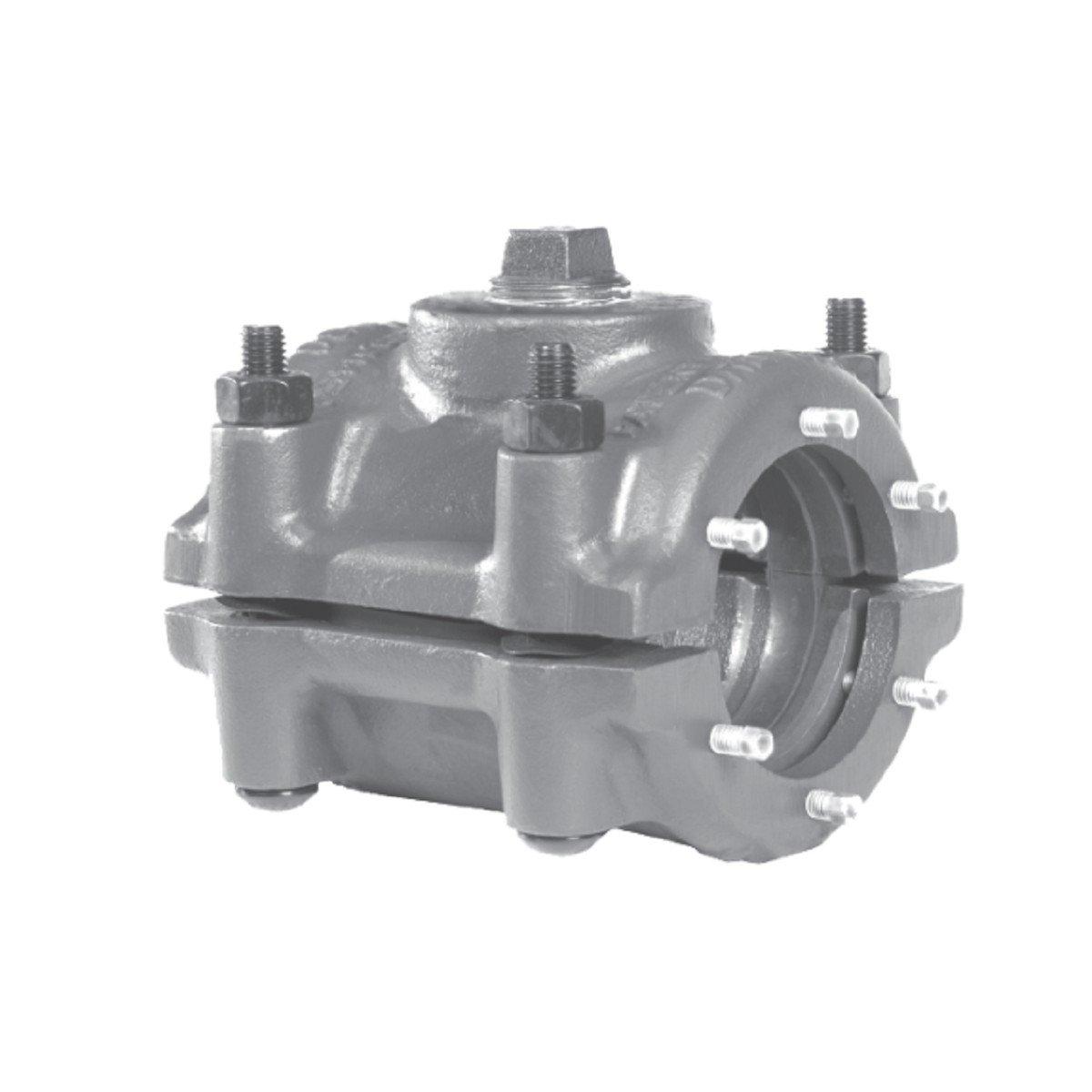

Dresser Style 80 “Ready-Pack” Split Sleeves are used to enclose and permanently repair breaks, splits and holes in cast iron pipe. Style 80 sleeves can also be used as an efficient, low-cost tapping sleeve for connecting new branch service outlets.

Style 80 sleeve bodies are cast from close-grained gray iron (malleable iron in 2” size). Steel follower rings on each end are completely enclosed in the sleeve body. When carbon steel set screws are tightened, they drawn up against the follower rings which compress the gasket creating total circumferential sealing on the pipe. Side bolts, which are fully enclosed within the sleeve body to prevent corrosion, are tightened to compress side gaskets providing a complete leak-proof pipe repair.

Style 80 sleeves are also available in a long pattern design for a larger sealing area. Style 80 repair sleeves are recommended for all customary pressures where pipe wall thickness is in conformity with specifications for standard cast iron pipe.

Material:

Body: Cast or Malleable Iron

Vent Plug: Forged steel to ASTM A105 or Cast to ASTM A126-42 Class A

Follower Rings: Cold-formed Carbon Steel

Bolts & Nuts: Alloy to AWWA C111/ANSI A21.11

Gaskets: Dresser Spec 328 Kevlar™ Reinforced Rubber

Set Screws: Heat treated carbon steel, cadmium plated

Coating: Dresser shopcoat as standard; Fusion-bonded Epoxy optional

Length
Nominal Size (inch)
Vent Size (IPS) (inch)
$ 129,597.94

All Domestic products are melted and manufactured in USA.

All Dresser Products are domestically manufactured by GE / Dresser at the plant in Pennsylvania, USA.

All Import Valves, Hammer Unions, Y-Strainers & Frac Tank Supplies are assembled and tested in USA with components made in China

All Import Buttweld, Socketweld & Threaded Fittings are made in China/Taiwan/India

All Import Flanges are made in China/Taiwan/India

All materials are ASTM / ASME equivalent. Visit our Knowledge Central page for more information on material grades, material chemistry and ASTM, ASME & ANSI myth.

If you have any question, call 281.516.8100 or email sales@trupply.com.
