Dresser Style 38 Coupling | Cast/Ductile Iron

Outside Diameter: 2.5 in
Middle Ring: (Thickness x Length) (inch): 0.188 in X 5 in
Gasket Type: (27) Buna S

Product variant with selected options does not exist!

Price
$ 135.60
SKU: 0038-0015-011
Weight: 12.0 lb

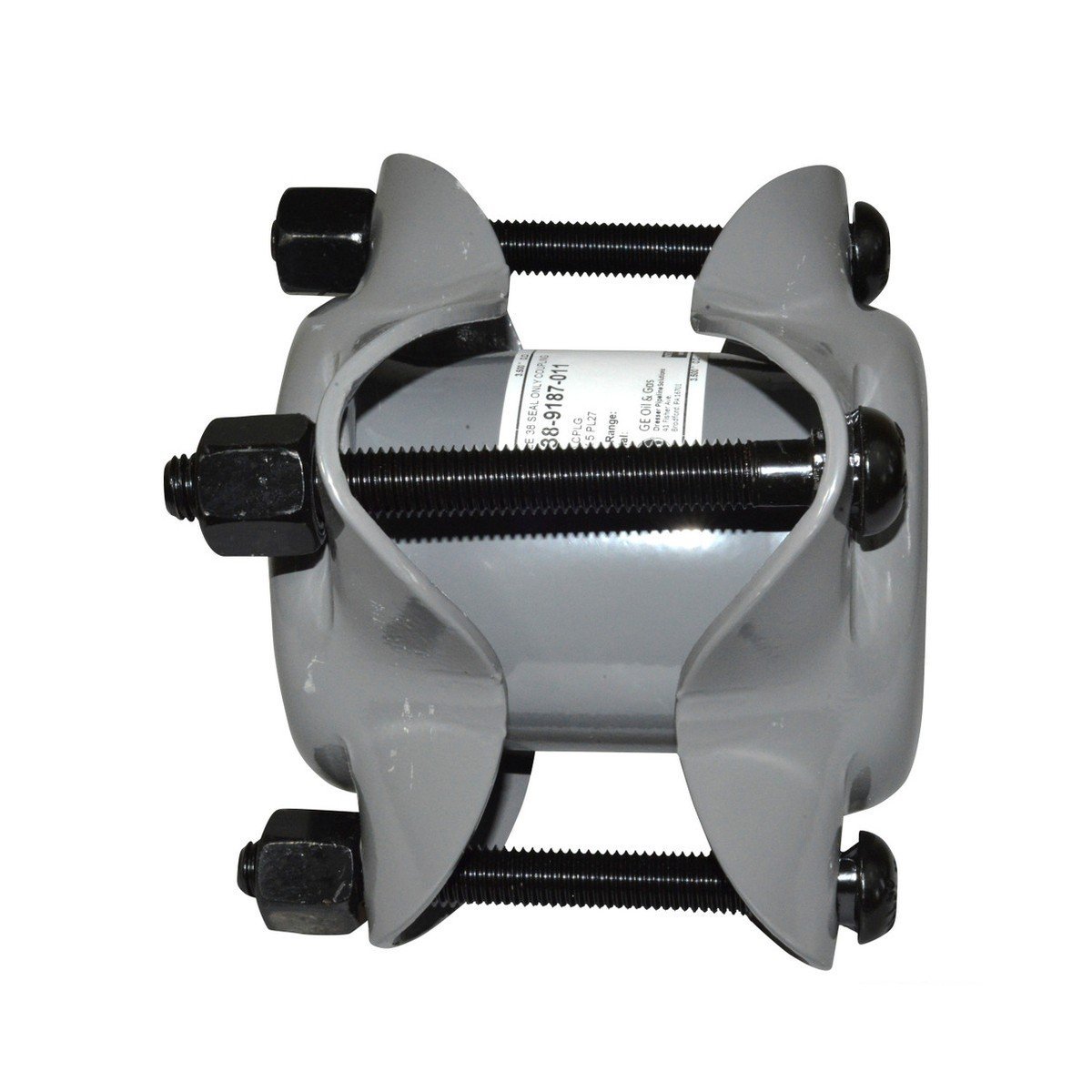

Style 38 | Dresser Coupling | Cast/Ductile Iron

Product Features:

Style 38 Dresser Coupling for Cast Iron Pipe Ductile Iron Pipe have long been used for joining plain end cast iron pipe, combining the advantages of absolutely tight joints and easier, faster pipe joining. Style 38 Dresser Coupling also permit the salvage and use of random lengths of cast iron pipe from which bell ends or cracked sections have been removed.

Style 38 for CI/DI Spec Sheet

Materials:

  • Followers : AISI C1012 or ASME SA36 (Ductile or Malleable Iron thru 1.9)
  • Middle Ring : ASTM A513 ASTM A635 or ASME SA675 GR60
  • Bolts : AWWA C 111/ANSI A21.11
  • Gaskets : Grade 27 BUNA S
  • Coating : Fusion-Bonded Epoxy
