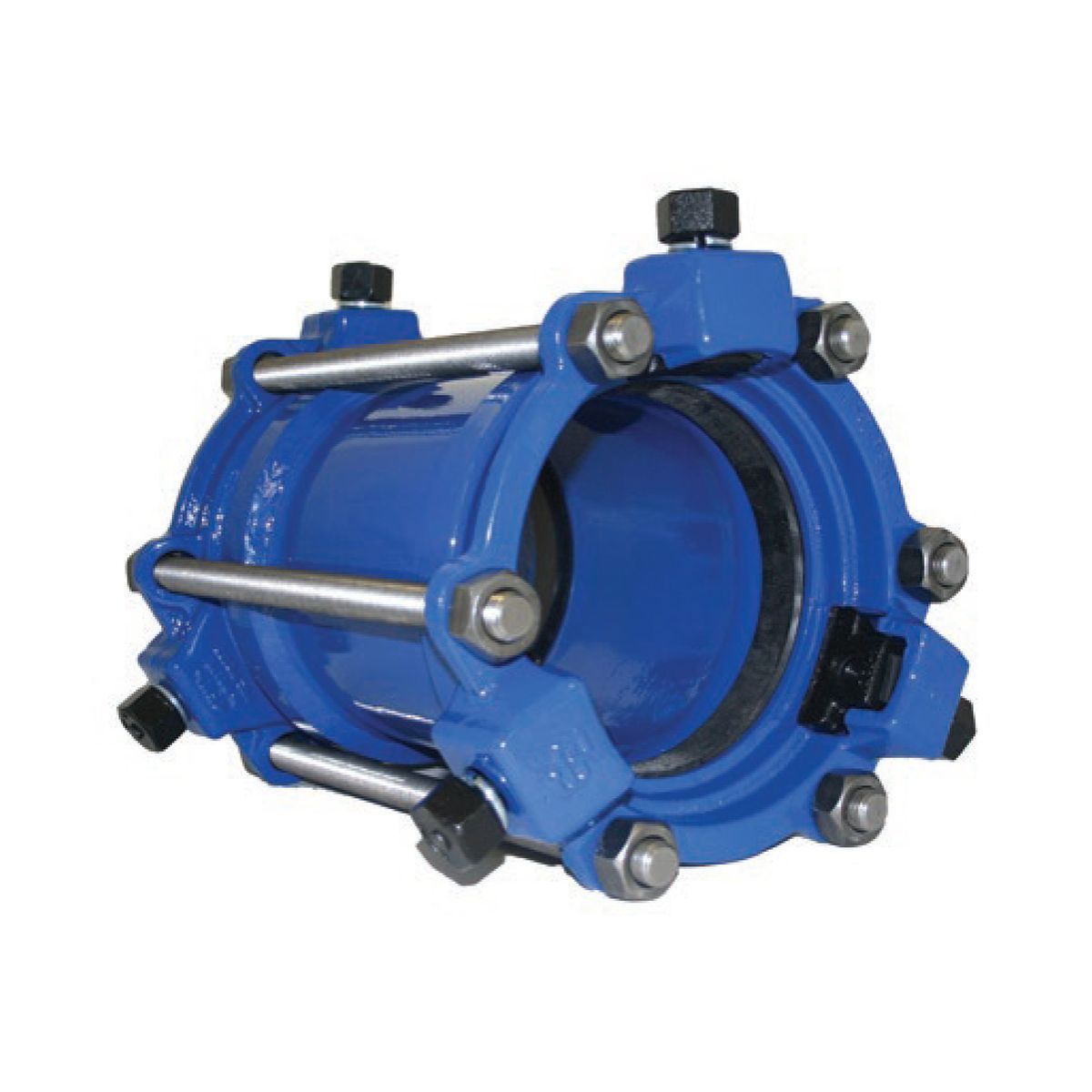

Style 471 | PipeLock Restraint | Steel Coupling | Ductile Iron Pipe

Nominal Size: 3 in
OD Range: 3.96 in
Sleeve Length: 7 in
Price
$ 314.74
SKU: 471-00000396-203
Weight: 29.0 lb

Style 471 | PipeLock Restraint | Steel Coupling | Ductile Iron Pipe

Product Features:

  • This is a fabricated Steel restraint coupling.
  • Application Joins and restrains a plain-end Ductile Iron pipe to plain-end Ductile Iron pipe or plain-end Steel pipe to plainend Steel pipe with no other method of restraining pipe required.
  • Mechanical restraint shall be an integral part of the follower gland utilizing multiple single tooth wedges
  • Breakaway nut torque per wedge is 45 to 60 ft. lbs
  • Longer sleeves available

Style 471 Smith Blair Spec Sheet

Materials:

  • SLEEVE ASTM A283 Gr. C or Carbon Steel having a minimum yield of 30000 PSI
  • FINISH Flexi-Coat Fusion-Bonded Epoxy
  • Cam-Lock€ž Specifications
  • GLAND 65-45-12 Ductile Iron (ASTM A536)
  • WEDGES Single Tooth Ductile Iron heat treated for Ductile Iron pipe applications
  • ACTUATING BOLTS 60-40-18 Ductile Iron (ASTM A536)
  • BREAKAWAY NUTS Carbon Steel
  • FINISH Gland is Flexi-Coat Fusion-Bonded Epoxy per AWWA C213 Wedges and actuating bolts are E-coated Epoxy
  • Kit Specifications
  • GASKET SBR Standard Mechanical Joint per ANSI/AWWA C111/A21.11 SBR Multi-Seal gasket or MJ transition gasket for Steel/IPS ODs. 30-48 sizes supplied with Smith-Blair MJ gasket all other sizes use standard MJ gaskets
  • STUDS/NUTS High strength low alloy per AWWA C111 Optional 304 Stainless Steel or fluoropolymercoated nuts.
  • Pipe Applications Ductile Iron Carbon Steel
