**Please note that pictures may not properly represent actual products**

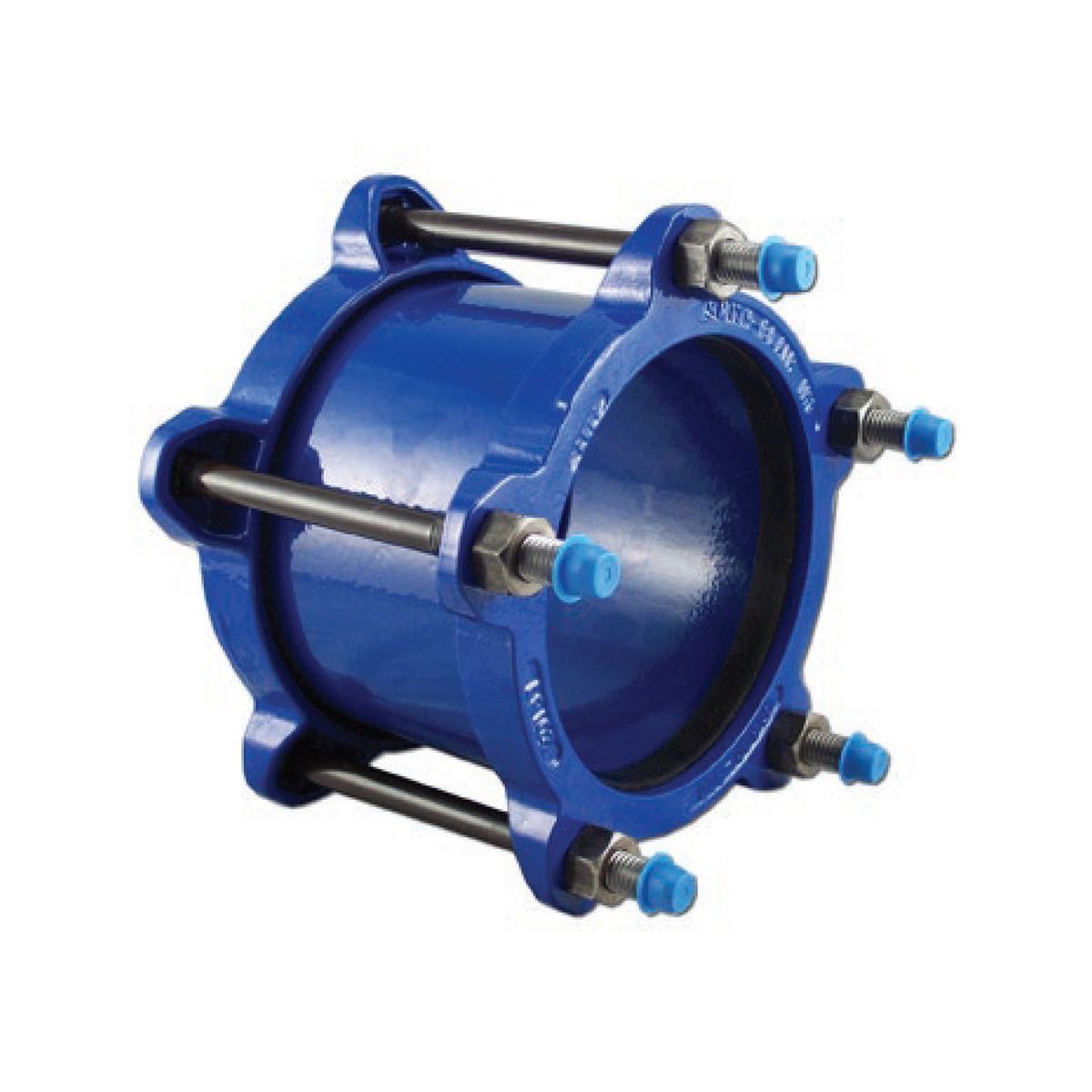

Style 413 | Steel Transition Coupling 2

Nominal Size: 5 in to 6 in
OD Range Inlet: 5.94 in to 6.13 in
OD Range Outlet: 6.18 in to 6.38 in

Product variant with selected options does not exist!

Price
$ 484.16
SKU: 413-06250600-103
Weight: 24.0 lb

Style 413 | Steel Transition Coupling 2



Typically ships in 7-10 business days



Product Features:

  • Used to connect pipes of different outside diameters when the maximum O.D. variation does not exceed the listed coupling O.D. range.
  • Application Joining plain end pipe of different diameters within the same nominal pipe size.
  • Meets applicable AWWA C219 Standards
  • Allows for limited expansion and contraction
  • Will dampen vibration to reduce pipe fatigue
  • Easy to install no special pipe end preparation required
  • Available in a wide variety of pipe O.D. sizes and sleeve lengths
  • Most sizes will accommodate anchor studs to restrain the joints
  • Can be custom made to fit odd O.D.s or other unusual applications
  • Provided with or without pipe stops to accommodate customer needs
  • Has good deflection capabilities allows change in piping direction without the need of elbows bends etc

Style 413 Smith Blair Spec Sheet

Materials:

  • SLEEVE ASTM A53 ASTM A513 or Carbon Steel having a minimum yield of 30000 PSI
  • FOLLOWERS Ductile Iron ASTM A536 or Steel AISI C 1020. Designed for a high strength to weight ratio Follower thickness determined by coupling size
  • BOLTS & NUTS High strength low alloy Steel with heavy semi-finished hexagon nuts. Optional Stainless Steel
  • GASKET Nitrile (Buna N) NSF 61 compounded to produce superior storage and performance characteristics while resisting water acids alkalies most (aliphatic) hydrocarbon fluids and other chemicals
  • Temperature Range -20F to 180F
  • FINISH Flexi-Coat Fusion Bonded Epoxy Finish
  • Working Pressure Up to 150 PSI Pipe Applications PVC Steel Ductile Iron AC and others.
General Information

Q) When will my item ship?
A) Most items ship with-in 24-48 hrs.

Q) When will I get the tracking number?
A) Trupply ship items from multiple warehouses. Tracking number is available 24 hrs after shipping.

Q) What is your return policy?
A) Trupply offers 100% refund for unused items with-in 30 days.

Q) How can I get MTR?
A) MTRs are provided upon request. You can mention it at the time of order under "Order Notes" or email customer service.

Q) Who pays for shipping?
A) The buyer

Q) Where is Trupply located?
A) Trupply's main warehouse and office is in Houston TX.

Q) What are your customer service hours?
A) Monday to Firday 8 AM to 5 PM Central Time.

Q) I have more technical questions.
A) Email or call us for further help.

Country of Origin

Domestic Products Manufactured or Assembled in USA

Technical Specifications
Test Report, Data Sheet And Drawing

Coming Soon
