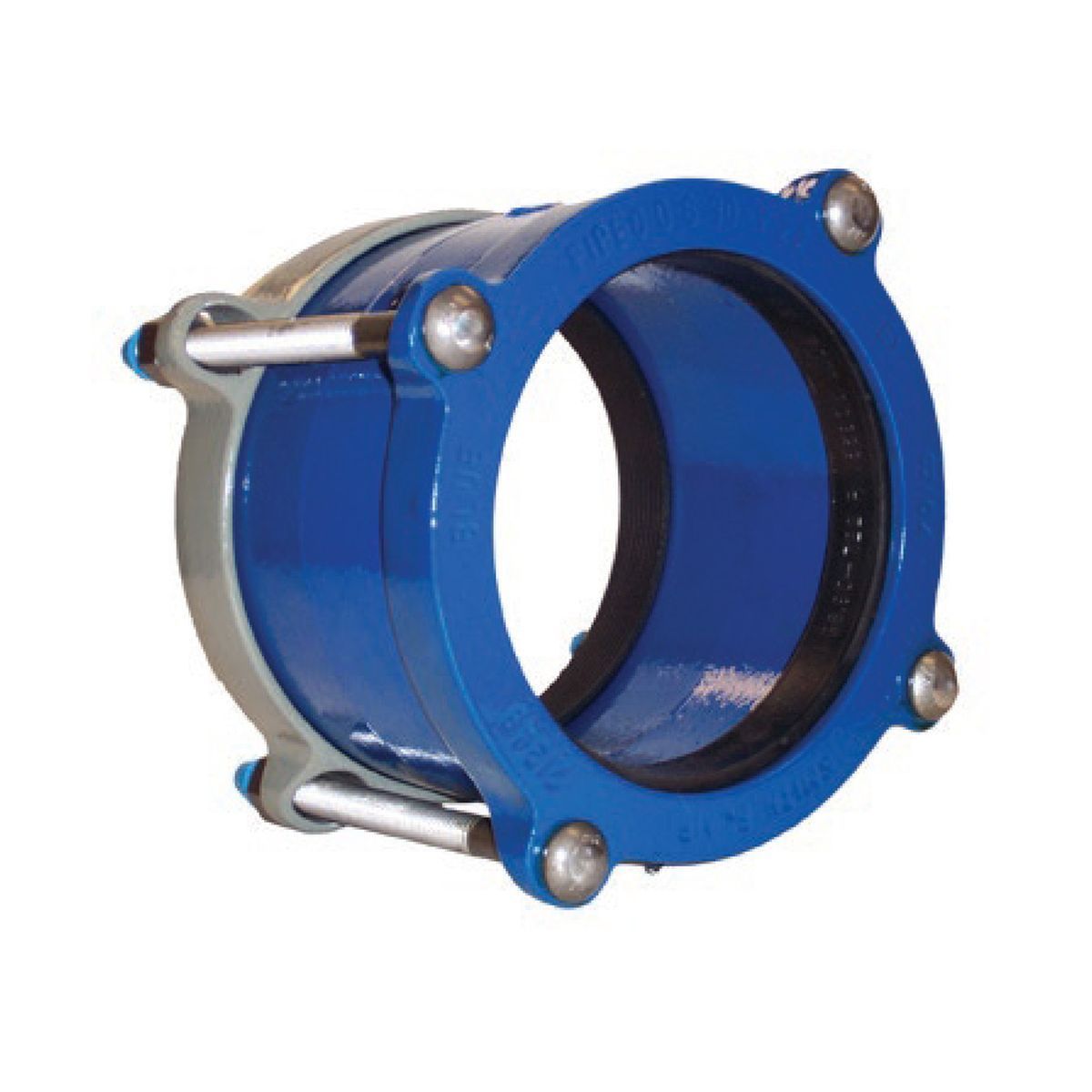

Style 441 | Cast Coupling | SS304 2

Nominal Size: 10 in
OD Range End Outlet: 10 in
OD Range End Inlet: 10 in

Product variant with selected options does not exist!

Price
$ 602.51
SKU: 441-00001000-931
Weight: 48.0 lb

Style 441 | Cast Coupling | SS304 2



Typically ships in 7-10 business days



Product Features:

  • Cast Couplings Application To join plain end pipes with the same or different O.D.s by changing followers and gaskets.
  • Heavy cast Ductile Iron parts for long life
  • Meets applicable AWWA C219 Standards
  • Flanges and gaskets can be mixed and matched on the same size nominal sleeve
  • Most couplings are stab fit making installation easy. No disassembly is required
  • Up to 2.4 of range with a single coupling reducing the need for large coupling inventories
  • One sleeve per nominal pipe size takes the guesswork out of deciding which sleeve size to choose
  • Flanges are color-coded by pipe type Red for iron pipe size O.D. Blue for Ductile O.D. and gray for Asbestos-Cement O.D.
  • Gaskets and flanges are permanently marked with a part number and range to facilitate proper selection
  • Sleeves are available in a variety of lengths and custom length Steel sleeves are available for special applications

Style 441 Smith Blair Spec Sheet

Materials:

  • SLEEVE Ductile Iron ASTM A536. Ends have smooth inside taper for uniform gasket seating
  • GASKET Nitrile (Buna N) certified to NSF/ANSI 61G. Compounded to produce superior storage and performance characteristics while resisting water acids alkalies most (aliphatic) hydrocarbon fluids and other chemicals
  • FOLLOWER FLANGES Ductile Iron ASTM A536. Designed for high strength to weight ratio
  • BOLTS & NUTS High strength low alloy Steel bolts with heavy semi-finished hexagon nuts to WWA C219 (ANSI A21.11) Optional Stainless Steel
  • FINISH Flexi-Coat Fusion-Bonded Epoxy Finish
  • Working Pressure Up to 250 PSI
  • Pipe Applications Steel Cast Iron Asbestos Cement PVC and other. For other pipe materials please contact Smith-Blair Engineering.
