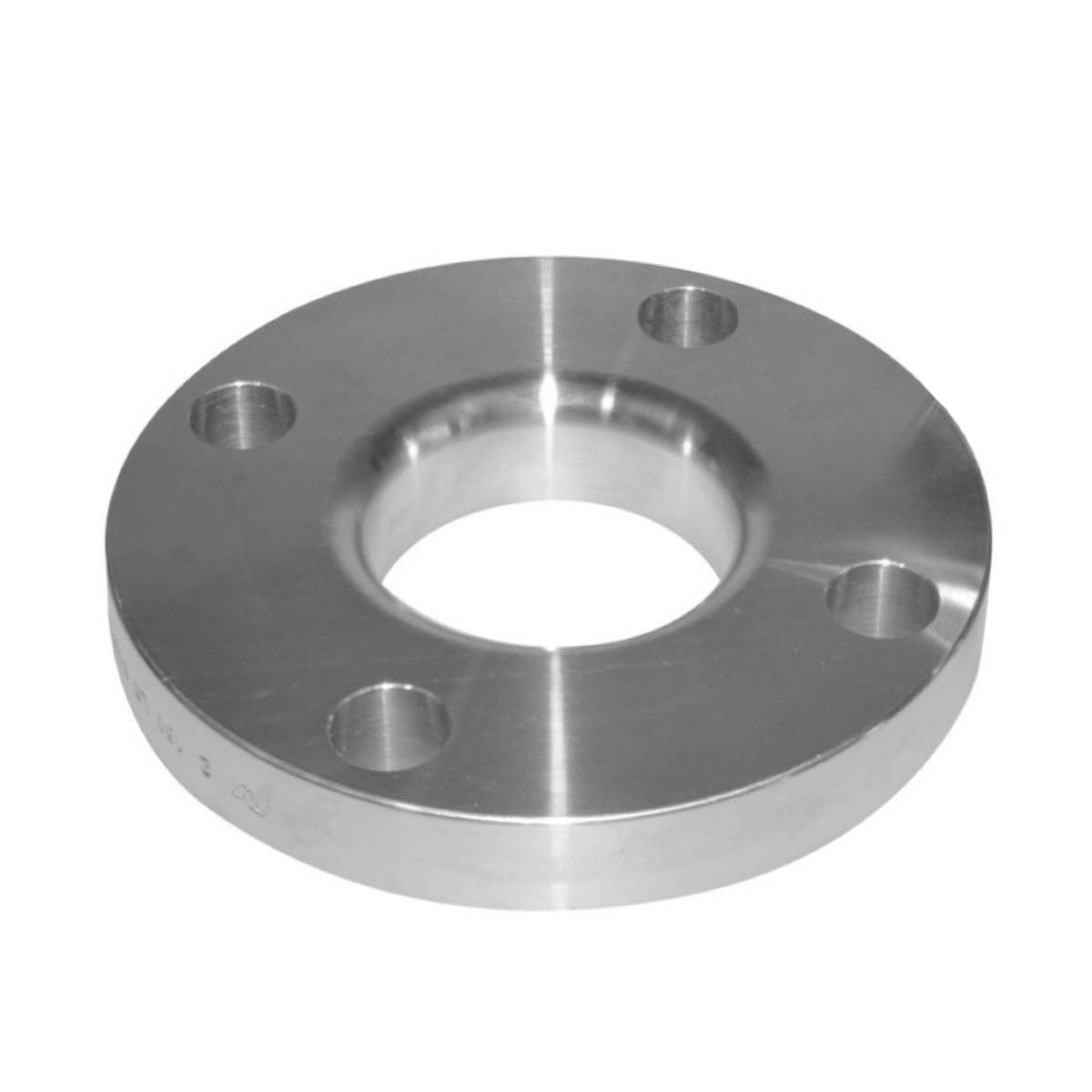

Lap Joint Flange | Stainless Steel 316 I

Product Description

Lap Joint Flange | Stainless Steel 316 I

Product Features:

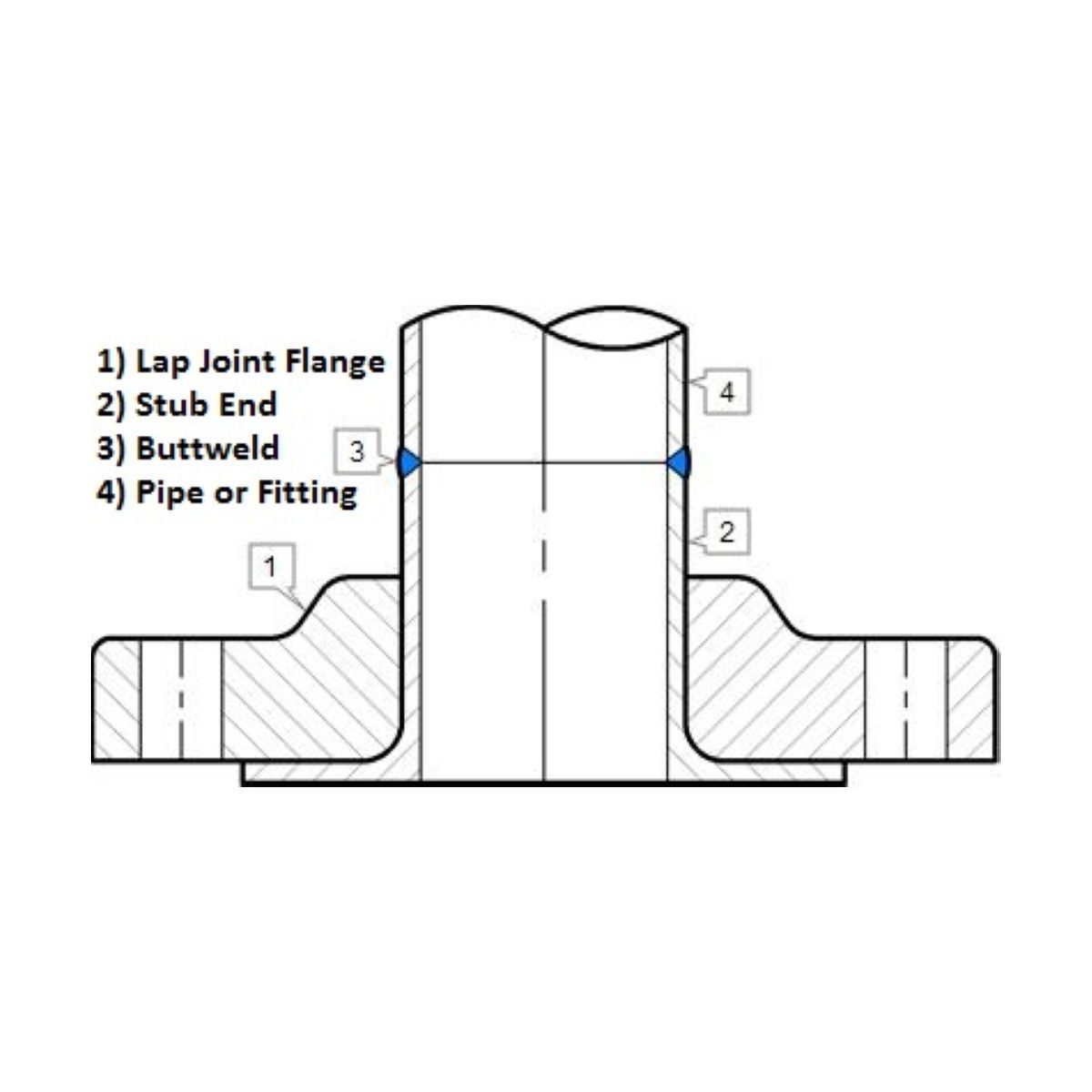

Lap Joint Flanges are used in conjunction with "Lap Joint Stub Ends". The stub end is welded to the pipe with the flange free fitting around the pipe. Bolting pressure is transmitted to the gasket from the flange against the back of the pipe lap to produce a seal.

Additional Flange Information

Material:

SS316 - A molybdenum stainless steel that provides excellent tensile, creep and stress-rupture strengths at elevated temperatures

Additional SS316 Material Information

Size & Dimensions

Size & Dimension table for Flanges

Size
Class
Face Type
$ 26.46

All Domestic products are melted and manufactured in USA.

All Dresser Products are domestically manufactured by GE / Dresser at the plant in Pennsylvania, USA.

All Import Valves, Hammer Unions, Y-Strainers & Frac Tank Supplies are assembled and tested in USA with components made in China

All Import Buttweld, Socketweld & Threaded Fittings are made in China/Taiwan/India

All Import Flanges are made in China/Taiwan/India

All materials are ASTM / ASME equivalent. Visit our Knowledge Central page for more information on material grades, material chemistry and ASTM, ASME & ANSI myth.

If you have any question, call 281.516.8100 or email sales@trupply.com.
