Domestic Flanges

Product Features:

A steel pipe flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

Steel Pipe flanges are manufactured in all the different materials like stainless steel, cast iron, aluminum, brass, bronze, plastic etc. But the most used material is forged carbon steel that include machined surfaces.In addition, flanges, like fittings and pipes, for specific purposes sometimes internally equipped with layers of materials of a completely different quality as the flanges themselves, which are "lined flanges". The material of a flange, is basically set during the choice of the pipe, in most cases, a flange is of the same material as the pipe.

All steel pipe flanges, sold at Trupply fall under the ASME and ASTM standards, unless otherwise indicated. ASME B16.5 describes dimensions, dimensional tolerances etc. and ASTM the different material qualities.

All domestic steel pipe flanges are made by material forged and machined in USA.

Material:

A105 - The standard forged carbon steel piping components for ambient and high temperature / pressure systems

SS304 - A common standard for stainless steel due to its malleability, high corrosive resistance weld-ability

SS316 - A molybdenum stainless steel that provides excellent tensile, creep and stress-rupture strengths at elevated temperatures

Material Description for Flanges

Size & Dimensions:

Size & Dimension table for Flanges

Blind Flange | A105 | Top
Blind Flange
A105
Domestic 2

Weldbend

From $ 16.92
Blind Flange | SS304 | Top
Blind Flange
SS304
Domestic

Trupply

From $ 28.80
Blind Flange | SS304 | Top
Blind Flange
SS316
Domestic

Trupply

From $ 37.44
Lap Joint Flange | A105 | Top
Lap Joint Flange
A105
Domestic

Weldbend

From $ 14.93

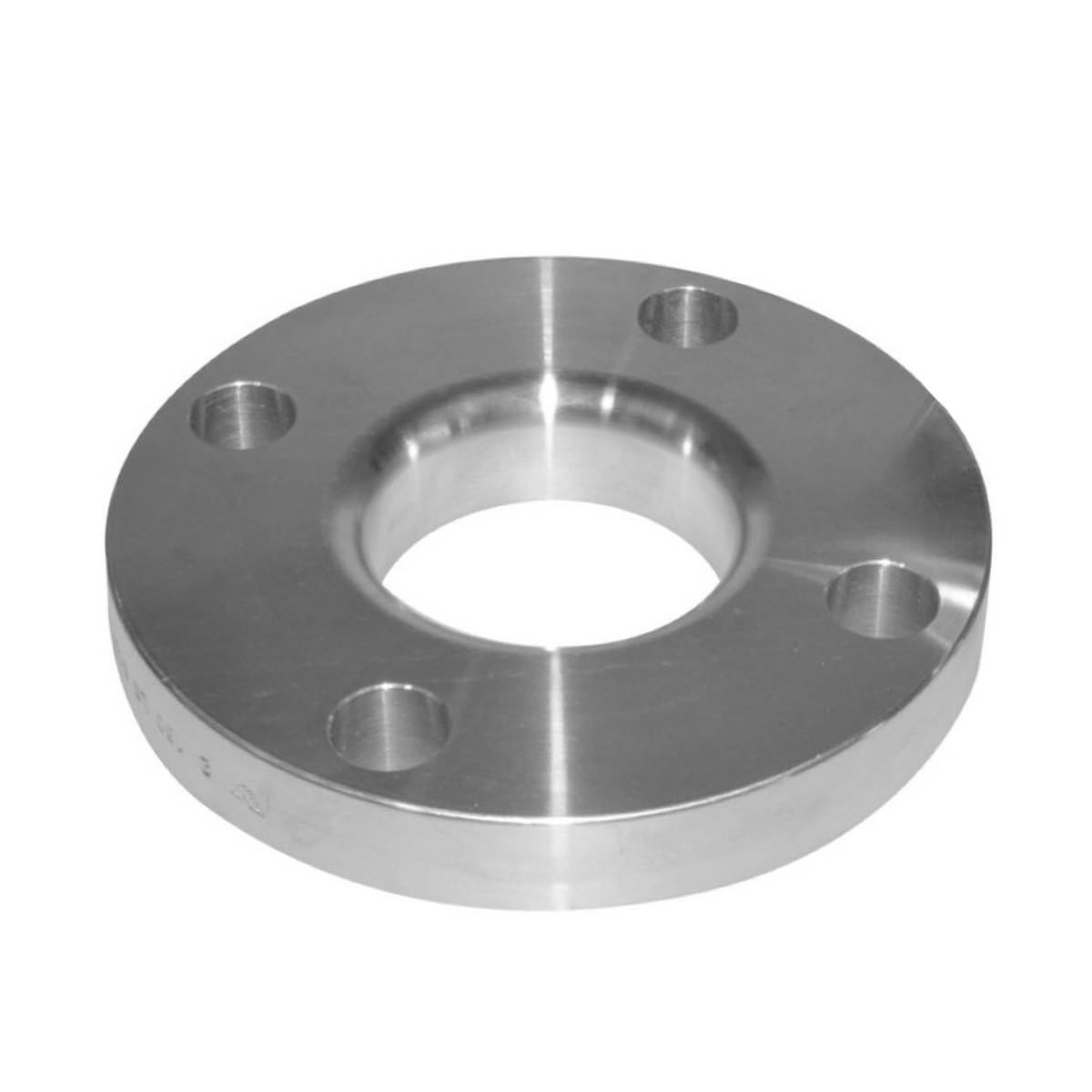

Lap Joint Flange | SS304 | Top
Lap Joint Flange
SS304
Domestic

Trupply

From $ 32.40
Lap Joint Flange | SS316 | Top
Lap Joint Flange
SS316
Domestic

Trupply

From $ 45.36
Slip On Flange | A105 | Top
Slip On Flange
A105
Domestic 2

Weldbend

From $ 14.12
Slip On Flange | SS304 | Top
Slip On Flange
SS304
Domestic

Trupply

From $ 28.80
Slip On Flange | SS316 | Top
Slip On Flange
SS316
Domestic

Trupply

From $ 37.44
Socket Weld Flange | A105 | Top
Socket Weld Flange
A105
Raised Face
Domestic

Weldbend

From $ 18.57
Socket Weld Flange | SS304 | Top
Socket Weld Flange
SS304
Domestic

Trupply

From $ 32.40
Socket Weld Flange | SS316 | Top
Socket Weld Flange
SS316
Domestic

Trupply

From $ 48.96
