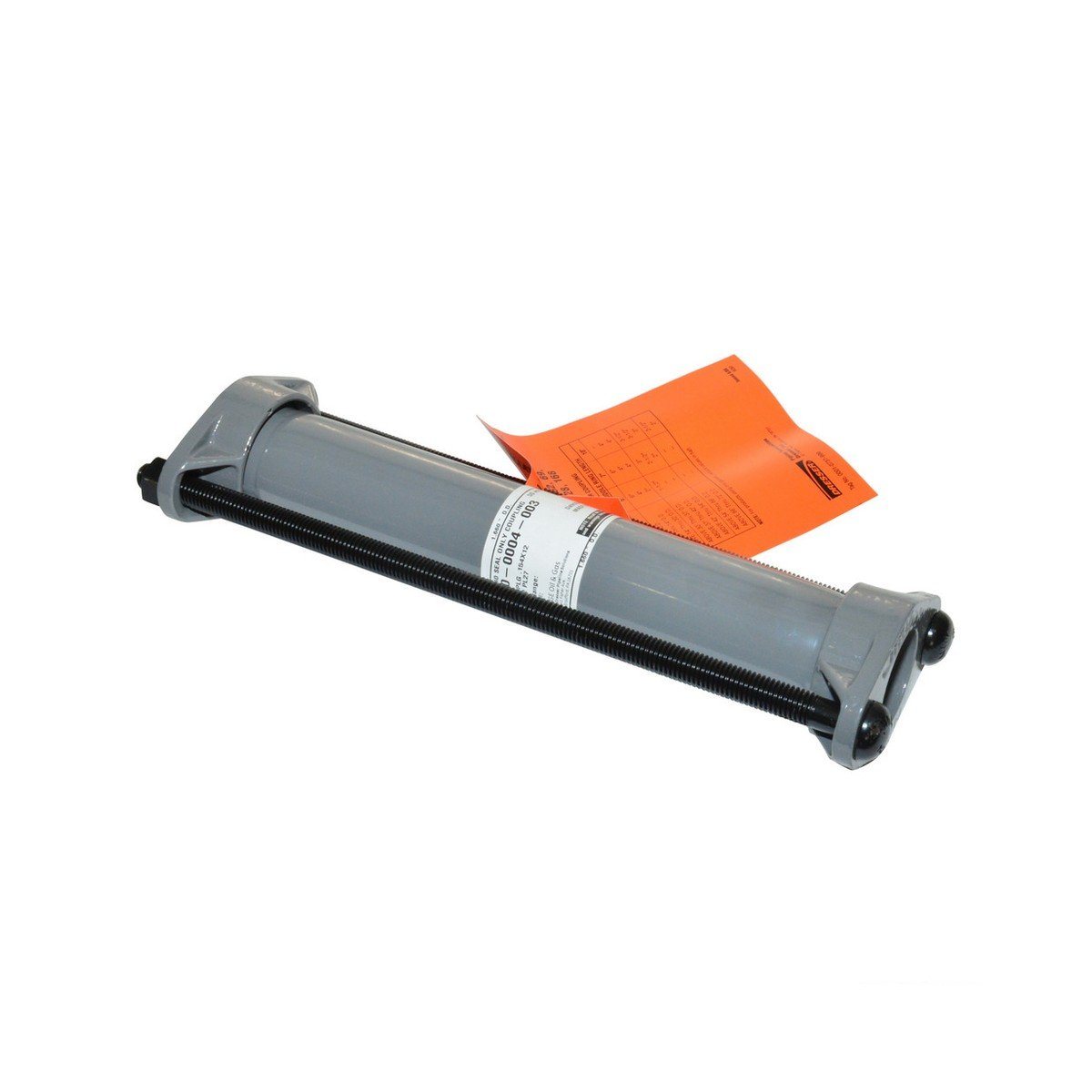

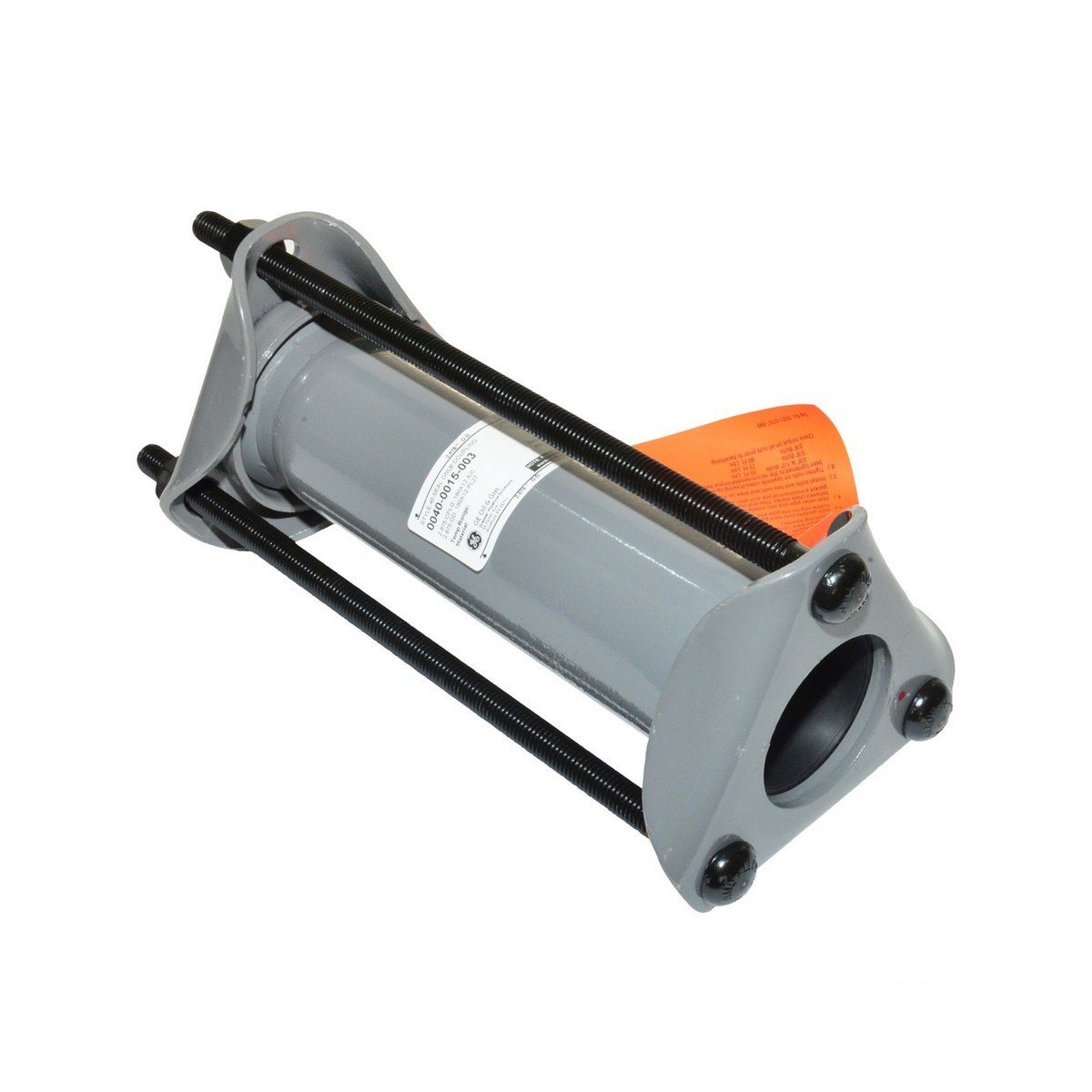

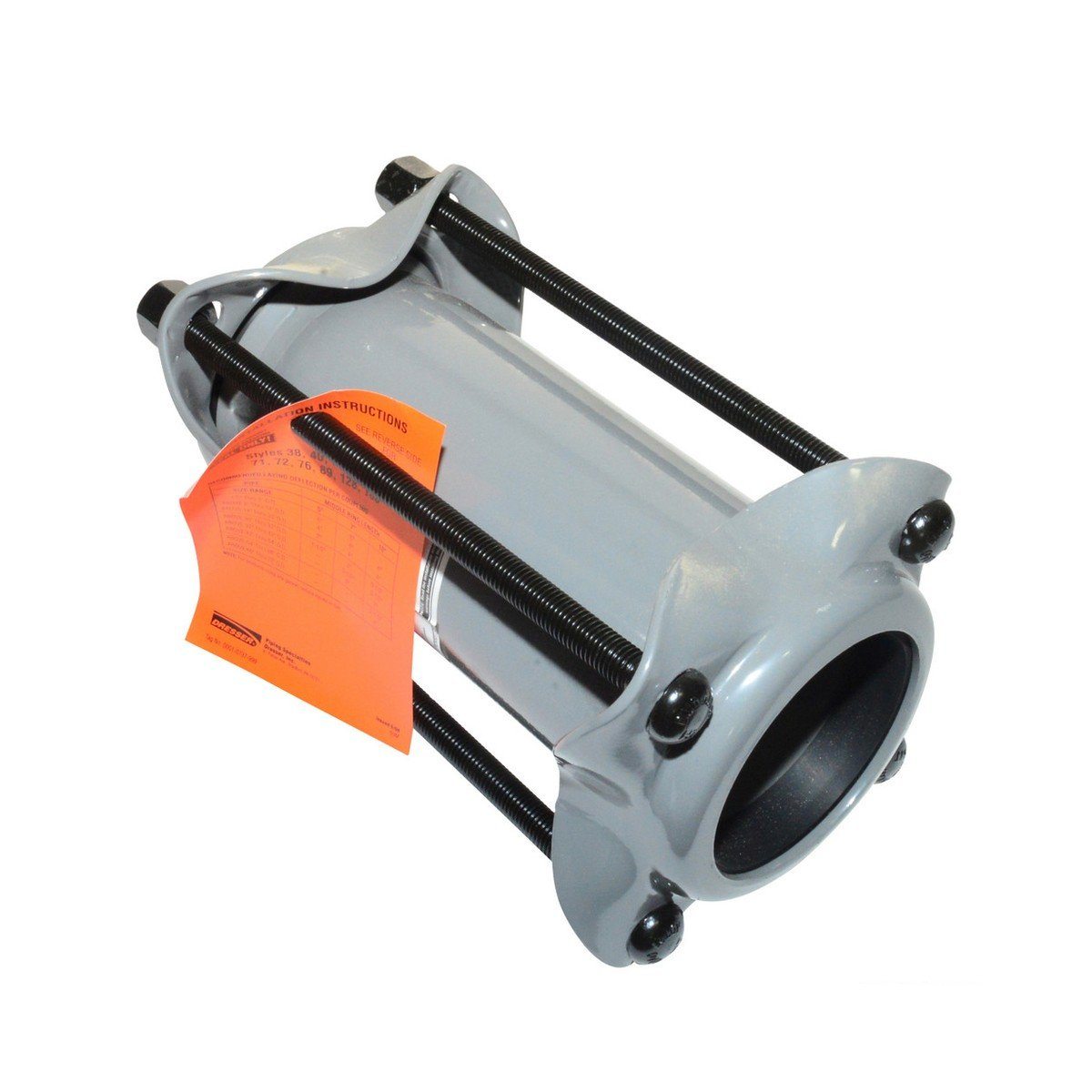

Dresser Style 40 | Long Coupling | Steel Pipe

Nominal Size: 0.5 in
Middle Ring | Thickness X Length: 0.156 in X 12 in
Gasket Type: (27) Buna S
Price
$ 149.92
SKU: 0040-0001-003
Weight: 18.0 lb

Style 40 | Long Coupling | Steel Pipe

Product Features:

Style 40 Long Body Dresser Couplings provide a simple and effective method of joining pipe where gaps are wider than ordinary. Besides having longer middle rings and belly diameters, the design is similar to Style 38 couplings. despite length, they absorb the same amount of expansion and contraction, up to 3/8 per joint.

Style 40 Dresser Spec Sheet

Materials:



  • Followers: AISI C1012 or ASME SA36 (Ductile or Malleable Iron thru 1.9)
  • Middle Ring : ASTM A513 ASTM A635 or ASME SA675 GR60
  • Bolts : AWWA C 111/ANSI A21.11

Size & Dimensions:

Size Dimension table for Style 40 Dresser Coupling for Cast Iron and Ductile Iron

Dimension table for Style 40 Dresser Coupling for Steel Pipe

General Information

Q) When will my item ship?
A) Most items ship with-in 24-48 hrs.

Q) When will I get the tracking number?
A) Trupply ship items from multiple warehouses. Tracking number is available 24 hrs after shipping.

Q) What is your return policy?
A) Trupply offers 100% refund for unused items with-in 30 days.

Q) How can I get MTR?
A) MTRs are provided upon request. You can mention it at the time of order under "Order Notes" or email customer service.

Q) Who pays for shipping?
A) The buyer

Q) Where is Trupply located?
A) Trupply's main warehouse and office is in Houston TX.

Q) What are your customer service hours?
A) Monday to Firday 8 AM to 5 PM Central Time.

Q) I have more technical questions.
A) Email or call us for further help.

Country of Origin

Domestic Products Manufactured or Assembled in USA

Technical Specifications

Coming Soon

Test Report, Data Sheet And Drawing

Coming Soon
