Fittings are essential components in any piping system, ensuring secure connections and supporting smooth fluid flow. When selecting fittings, engineers, contractors and plant operators must consider the type of connection, installation demands, pressure ratings, maintenance needs and overall system reliability. Among the most widely used options in industrial applications are threaded fittings and socket weld fittings. Both serve similar purposes but differ significantly in design, performance and best-use scenarios. This detailed comparison will help you understand how each fitting type works, where it should be used and which option is better suited for your project’s requirements.
What Are Threaded Fittings?
Threaded fittings -also known as screwed fittings -use male and female threads to join pipes, valves and other piping components. They’re commonly found in smaller pipe sizes, typically up to 4 inches and are available in a variety of shapes such as elbows, tees, couplings, unions and plugs.
Most threaded fittings follow NPT (National Pipe Thread) standards in North America, offering a tapered thread design that helps create a mechanical seal. They are usually manufactured from forged materials such as stainless steel, carbon steel, brass and alloy steel, depending on the application.
Threaded fittings are valued for their simplicity. They do not require welding, special equipment or high-skilled labor. They are ideal for small systems, low-pressure lines, temporary installations or areas where welding is not feasible. However, because the connection relies on threads, they are more prone to leakage -especially in high-vibration or high-pressure environments.
What Are Socket Weld Fittings?
Socket weld fittings create a joint by inserting the pipe into a recessed socket and welding it around the outer surface. These fittings are governed by standards such as ASME B16.11, ensuring precision and durability. They are typically used for high-pressure and high-temperature applications where a stronger, permanent connection is required.
Socket weld fittings are available in elbows, tees, reducers, caps and couplings, often in pressure classes like Class 3000, Class 6000 and Class 9000. The welding process forms a smooth, leak-proof flow path, making them particularly suitable for steam lines, chemical plants, high-pressure hydraulics and industrial process piping.
While socket weld fittings deliver superior strength and reliability, they require skilled welders, specialized tools and proper inspection methods. This makes installation more complex but ensures long-term performance in demanding environments.

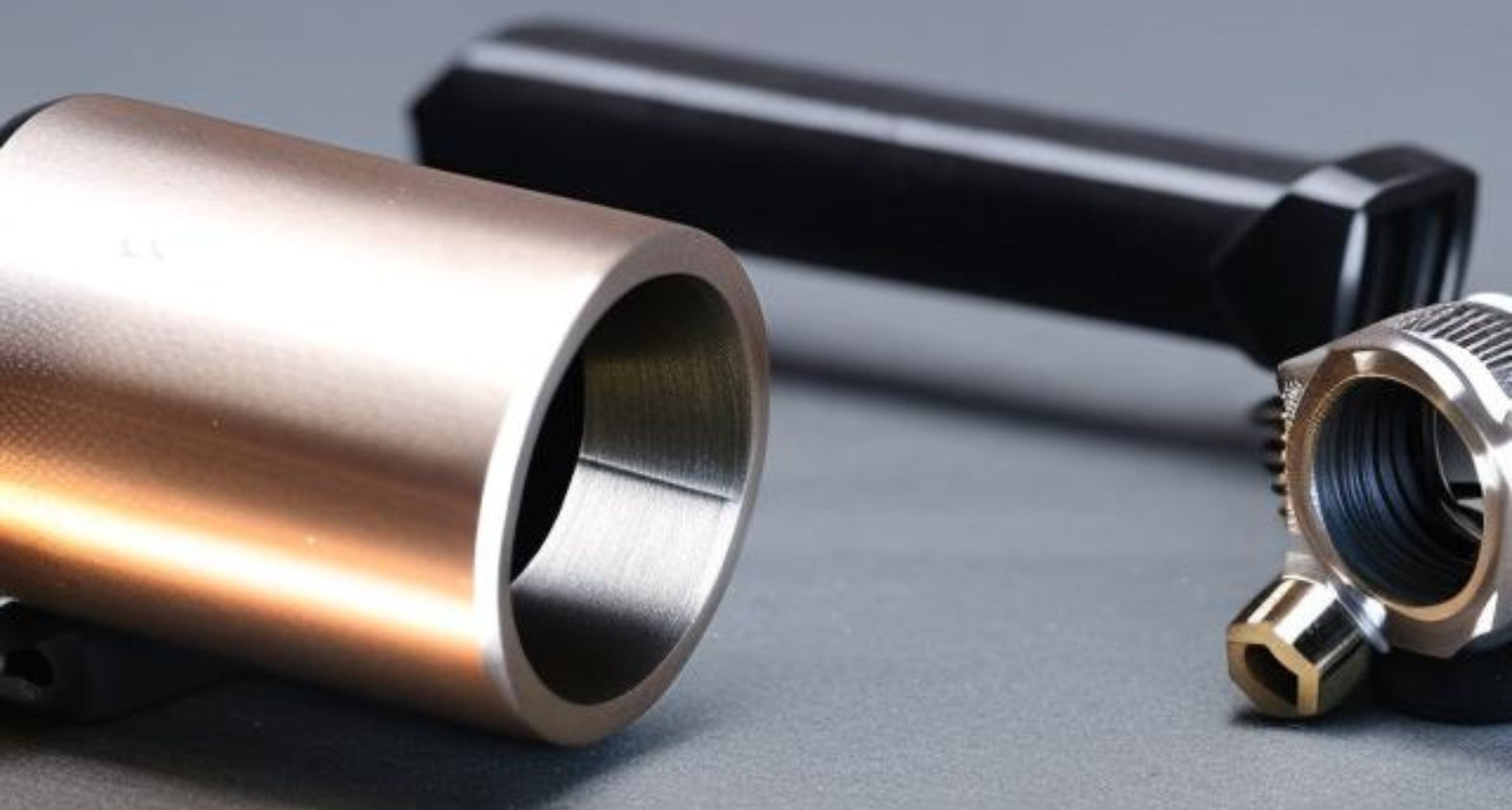

Threaded vs. Socket Weld Fittings: Detailed Comparison
1. Connection Method
Threaded fittings join components using tapered threads. The sealing is enhanced using materials such as PTFE tape or pipe dope. Socket weld fittings rely on a welded joint, which permanently fuses the fitting to the pipe.
2. Strength & Reliability
Socket weld fittings provide a robust, leak-free connection due to continuous welding. They are better suited for higher pressure and temperature operations.
Threaded fittings, though convenient, can loosen under vibration or temperature fluctuations, increasing the risk of leaks.
3. Installation Requirements
Threaded fittings are easy to install, requiring basic tools such as pipe wrenches. No welding is necessary. Socket weld fittings need proper welding equipment, a skilled welder and quality checks -making installation more time-consuming.
4. Pressure & Temperature Handling
Socket weld fittings outperform threaded fittings in high-pressure and high-temperature conditions. Threaded fittings perform well in moderate pressure systems, but extreme conditions can lead to thread damage or leakage.
5. Material Compatibility
Both fitting types are available in stainless steel, carbon steel, brass and various alloys. However, threaded stainless steel components are prone to galling (thread seizing), which is not an issue with socket welds.
6. Safety & Maintenance
Threaded systems require periodic tightening or sealant replacement. Improper tightening may lead to cracking or leaks. Socket weld systems demand safer installation practices due to welding but require minimal maintenance afterward.
7. Common Failure Modes
Threaded fittings may fail due to overtightening, vibration loosening, corrosion inside the threads or galling. Socket weld failures typically result from poor welding, insufficient penetration or thermal cracking in high-cycling systems.
Applications & Best Use Cases
Threaded Fittings Are Best For:
-
Low- to medium-pressure systems
-
Water lines, air lines and industrial utility piping
-
Small pipe sizes (½" to 2")
-
Systems requiring quick assembly or disassembly
-
Locations where welding is restricted
Socket Weld Fittings Are Best For:
-
High-pressure steam, oil and gas lines
-
Chemical and petrochemical plants
-
High-temperature operations
-
Permanent installations
-
Systems where zero leakage is critical
Because of their superior strength, socket weld fittings are commonly used in industries like refineries, power plants, offshore platforms and high-pressure hydraulics.
Cost Comparison (Material + Labor + Maintenance)
Threaded fittings are cheaper overall due to lower material cost and quick installation. They also save on labor expenses because no welding is required.
Socket weld fittings, however, have a higher initial cost. The fittings themselves may be more expensive and the need for certified welders increases labor charges.
In the long run, socket weld systems offer lower maintenance and fewer failures, making them cost-effective for demanding, high-pressure operations.
How to Choose the Right Fitting Type (Buying Guide)
Consider the following factors when selecting between threaded and socket weld fittings:
1. Pressure Rating
Pressure requirements play a major role in choosing the correct fitting. Socket weld fittings are designed for high-pressure systems because the welded joint provides superior strength and leak resistance. Threaded fittings are better suited for moderate pressure levels, where operating conditions are stable and the risk of vibration or sudden pressure surges is low.
2. Temperature Conditions
High-temperature environments demand fittings that maintain structural integrity under thermal expansion and contraction. Socket weld fittings perform exceptionally well because welded joints minimize movement and potential leakage. Threaded fittings can loosen or deform when exposed to continuous temperature fluctuations, making them less reliable for extreme heat applications or systems with rapid temperature cycling.
3. Pipe Size
Pipe diameter influences which fitting type works best. Threaded fittings are recommended for smaller pipe sizes, typically up to 2 inches, where installation is easier and pressure demands are moderate. For larger diameters, socket weld or butt-weld fittings provide stronger, more stable connections capable of handling higher loads and long-term stress without compromising safety or performance.
4. Vibration Levels
Systems that experience high vibration, pulsation or continuous mechanical movement require secure connections that won’t loosen over time. Threaded fittings can gradually back off due to vibration, increasing the chance of leakage. Socket weld fittings, with their welded joints, remain fixed and stable, making them a better choice in high-vibration industrial settings such as pumps and rotating equipment lines.
5. Assembly & Maintenance Needs
Ease of installation and future maintenance requirements also influence fitting selection. Threaded fittings are ideal for systems that require frequent disassembly, inspection or replacement because they can be easily tightened or removed with basic tools. Socket weld fittings, being permanent welded connections, are better for long-term systems where minimal maintenance and maximum reliability are expected.
6. Budget
Budget constraints often guide the choice between fitting types. Threaded fittings offer lower upfront costs due to simpler installation and the absence of welding labor. However, socket weld fittings, while more expensive initially, deliver better long-term value in demanding applications by reducing leaks, downtime and replacement needs. The final decision should balance immediate expenses with lifecycle performance.
Common Failure Modes: What to Watch For
-
Threaded Fittings: Loosening due to vibrations, leaks from improper sealing, corrosion on thread flanks and cracking from overtightening.
-
Socket Weld Fittings: Weld defects such as lack of fusion, undercuts or thermal cracking during cyclic temperature variations.
Understanding these failure modes helps in selecting the right fitting and maintaining system reliability.
Conclusion: Which One Should You Choose?
Both threaded and socket weld fittings play vital roles in industrial piping systems. Your choice should depend on operating conditions, pressure requirements, maintenance expectations and installation capabilities. Threaded fittings are ideal for small, low-pressure and easy-access systems, while socket weld fittings provide unmatched reliability for high-pressure and high-temperature operations.
Evaluating these factors carefully will help you select the best option for long-term performance and safety.
FAQs
Are threaded fittings suitable for high-pressure applications?
Not typically. They are best for low- to medium-pressure conditions.
Can socket weld fittings be used in steam service?
Yes, socket weld fittings are recommended for high-pressure steam lines.
What thread type is commonly used for threaded fittings?
NPT (National Pipe Thread) is the most widely used thread standard.
Are socket weld fittings more expensive?
Yes, but they offer longer service life and fewer leaks.
5. Do threaded fittings require sealants?
Yes, PTFE tape or pipe dope is used to prevent leakage.
6. When should threaded fittings be avoided?
In high-vibration or high-temperature systems.
7. Do socket weld fittings require skilled labor?
Yes, proper welding is essential to ensure connection integrity.
