Pipe Nipples in Industrial Piping: Types, Sizes & Common Uses

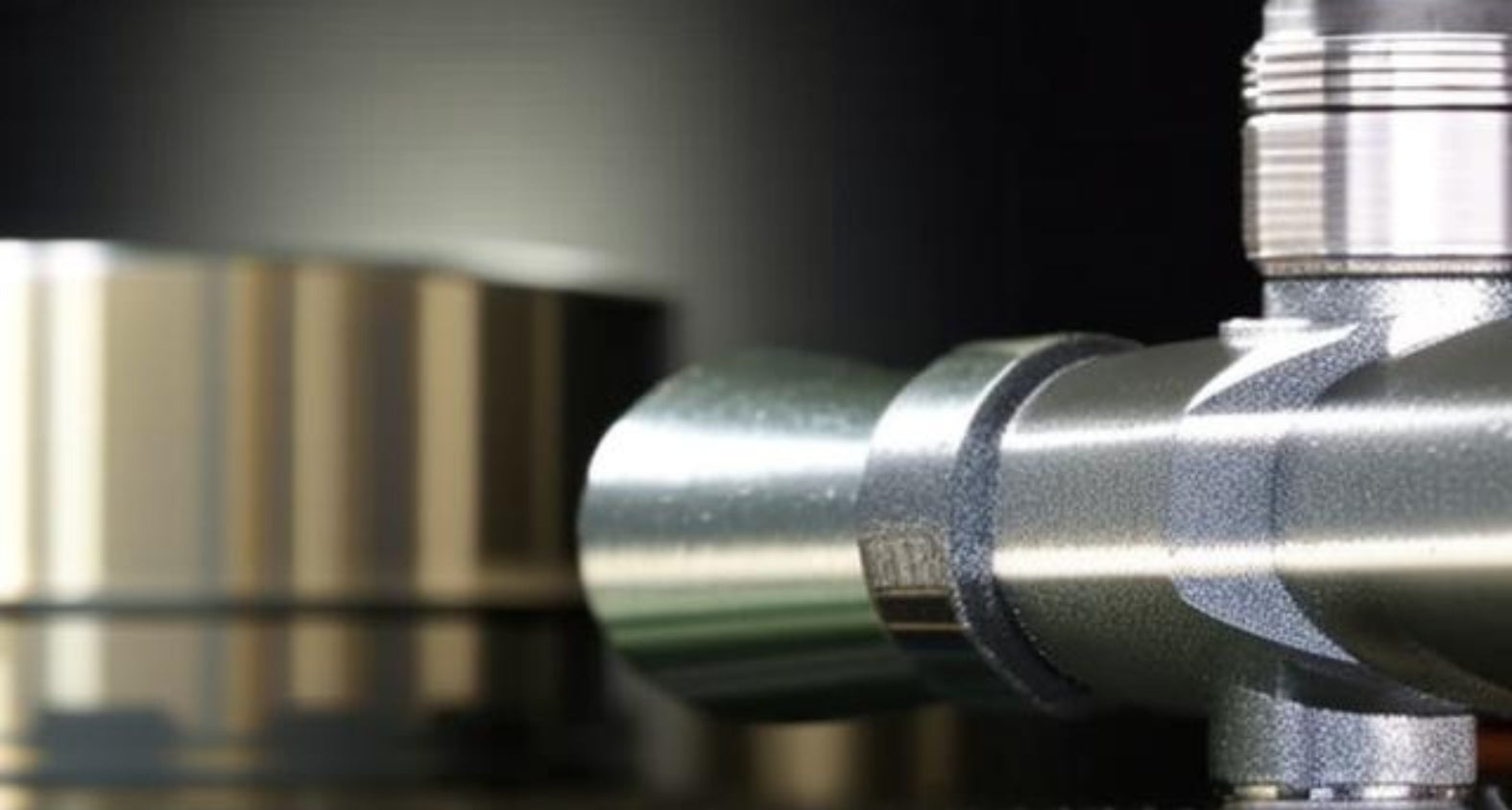

When it comes to industrial piping, nipples serve as vital connectors, enabling the seamless linkage of fittings and valves. So, what is a pipe nipple? A pipe nipple is a short, threaded piece of pipe used to connect fittings, valves, or equipment while maintaining proper flow and pressure. These components are indispensable for ensuring fluid flow in various applications.

In this comprehensive guide, we'll delve into the nuances of nipples, exploring their diverse types, sizes, materials, and how to make the optimal selection for your specific needs.

Understanding Nipple Varieties

Understanding different pipe nipple types is essential for selecting the right connector for industrial piping systems. Nipples predominantly come in three distinct types:

1. Straight Nipples: Featuring uniform diameters on both ends, straight nipples are ideal for connecting fittings of identical sizes.
2. Reducing Nipples: With different diameters at each end, reducing nipples facilitate the connection between fittings of varying sizes.
3. Close Nipples: Compact in design, close nipples boast threaded ends with minimal spacing, making them suitable for confined spaces between fittings.

Deciphering Nipple Dimensions

Nipple sizes are characterized by their length and diameter, typically expressed in inches. Length spans from 1/8 inch to 6 inches, while diameter ranges from 1/8 inch to 4 inches, catering to diverse industrial requirements. Engineers often rely on a pipe nipple sizes chart to quickly determine the correct configuration for a specific system.

Pipe Nipple Sizes Chart

Thread Types & Compatibility in Pipe Nipples

Pipe nipples are manufactured with standardized threads to ensure compatibility with fittings and valves. The most commonly used thread type in industrial piping is NPT (National Pipe Thread), which features a tapered design to create a pressure-tight seal when tightened.

In some applications, especially in international or legacy systems, BSP (British Standard Pipe) threads may be used. It is critical to avoid mixing thread standards, as mismatched threads can lead to leakage, improper engagement, or joint failure. Always verify thread type, taper, and direction before selecting a pipe nipple to ensure a secure and leak-free connection.

Materials Matter

Selecting the right pipe nipple materials is critical for durability, corrosion resistance, and operational safety. Nipples are crafted from a variety of materials, each tailored to specific applications and environmental conditions:

1. Stainless Steel: Renowned for its durability and corrosion resistance, stainless steel nipples excel in high-pressure and high-temperature environments.
2. Carbon Steel: Offering robust strength and cost-effectiveness, carbon steel nipples are well-suited for low-temperature applications.
3. Brass: Corrosion-resistant and conductive, brass nipples find favor in low-pressure applications.
4. PVC: Lightweight and affordable, PVC nipples are suitable for low-pressure scenarios involving water or chemicals.

Pressure & Temperature Considerations for Pipe Nipples

The pressure and temperature limits of a pipe nipple depend largely on its material, wall thickness, and manufacturing standard. Stainless steel and carbon steel nipples are commonly used in higher-pressure and elevated-temperature systems, while brass and PVC nipples are better suited for low-pressure applications.

Operating conditions such as steam service, thermal expansion, and pressure fluctuations should always be considered during selection. Choosing a pipe nipple that meets or exceeds system requirements helps prevent leaks, deformation, and premature failure in demanding industrial environments.

Selecting the Perfect Nipple

Choosing the right nipple entails considering several crucial factors, including:

• Size: Ensure compatibility between nipple size and the fittings or valves it will connect.
• Material: Select a material compatible with the fluid, gas, and operating environment.
• Length: Opt for a nipple length that provides adequate space between fittings or valves.
• Threads: Verify that the nipple threads align seamlessly with those on the fittings or valves.
• Pressure and Temperature: Choose a nipple capable of withstanding the intended fluid or gas pressure and temperature.

Effortless Nipple Installation

Installing nipples is a straightforward process, involving the following steps:

1. Clean the threads on the fittings or valves where the nipple will be installed.
2. Apply Teflon tape or pipe dope to the nipple threads for a secure seal.
3. Screw the nipple into the fitting or valve and tighten using a pipe wrench or pliers.
4. Repeat the process for the opposite end of the nipple to complete the connection.

Conclusion

Nipples serve as indispensable components in industrial piping systems, facilitating seamless connections between fittings and valves. With a diverse array of types, sizes, and materials available, selecting the ideal nipple requires careful consideration of various factors. By adhering to proper installation procedures, you can ensure leak-free connections and optimal performance in your piping infrastructure.

FAQs

1. What is a pipe nipple used for?

A pipe nipple connects two fittings, valves, or components in a piping system while maintaining pressure and flow.

2. How do I measure pipe nipple length correctly?

Pipe nipple length is measured end-to-end, including threaded portions.

3. What is the difference between a pipe nipple and a coupling?

A pipe nipple has external threads on both ends, while a coupling has internal threads.

4. Can pipe nipples handle high-pressure applications?

Yes, when the correct material and schedule are selected, pipe nipples can safely handle high-pressure systems.

5. Are pipe nipples reusable?

Reusability depends on thread condition and application. In critical systems, replacement is recommended.
