How Gate Valves Work: A Deep Dive into Their Design and Operation

How Gate Valves Work: A Deep Dive into Their Design and Operation

Gate valves are among the most widely used industrial valves because of their simple yet effective on/off mechanism. They offer a straight-through flow path with minimal resistance when fully open, making them a reliable choice in pipelines that demand efficient fluid handling. For engineers and procurement specialists, understanding how gate valves are designed, how they operate and where they fit best is vital for system safety and reliability. In this guide, we explore their design, working principle, major types, pros and cons and applications.

What is a Gate Valve?

A gate valve is a linear-motion valve that uses a flat or wedge-shaped gate (disc) to allow or block fluid flow. Unlike regulating valves, gate valves are intended only for fully open or fully closed positions. When open, they provide full bore flow; when closed, the gate presses against the seat to achieve isolation.
They are common in oil and gas pipelines, power generation, water distribution networks, chemical processing and even residential plumbing systems where complete shutoff is required.

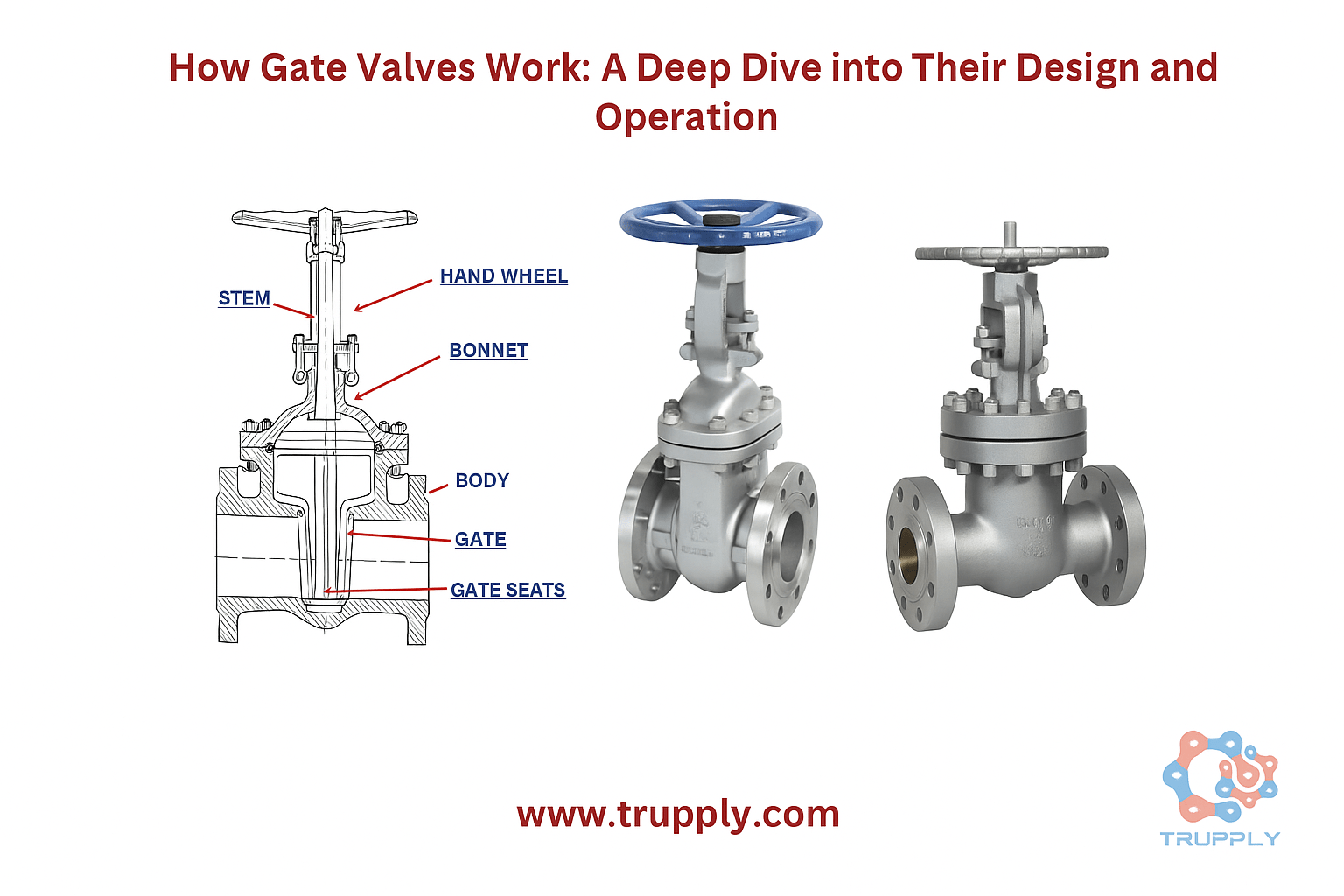

Gate Valve Design and Key Components

A gate valve’s performance depends on the coordination of its main parts:

  • Body: The pressure-containing shell that houses all components.
  • Bonnet: Provides access to internal parts and seals the valve body.
  • Gate/Disc: The barrier that moves up and down to block or permit flow.
  • Stem: Connects the gate to the actuator or handwheel transmitting motion.
  • Seat Rings: Provide sealing surfaces against which the gate presses.
  • Packing & Gland: Prevent leakage around the moving stem.
  • Handwheel/Actuator: The Manual or powered device to move the stem.

Two stem styles are widely used: rising stem (moves visibly up and down, showing valve position) and non-rising stem (the stem stays in place while the gate moves internally ideal for tight spaces).

Materials range from cast iron and carbon steel to stainless steels and alloys, depending on media, pressure and temperature.

Working Principle of a Gate Valve

The operation of a gate valve is straightforward:

  1. Opening: Turning the handwheel anticlockwise (or engaging the actuator) rotates the stem threads, lifting the gate upward. The bore becomes fully unobstructed and fluid flows with minimal turbulence.
  2. Closing: Turning the handwheel clockwise lowers the gate, which seats against the valve bed and seals the passage. The packing and seat ensure tight shutoff.

This simple door-like action makes gate valves durable, but it also explains their limitation - they are not designed for throttling. Partial openings create turbulence, vibration and wear, which shortens service life.

Types of Gate Valves

Gate valves come in different configurations, each optimized for certain media and service conditions:

  • Solid Wedge Gate Valve: Most common, with a single solid gate; reliable for general water, oil and gas service.
  • Flexible Wedge Gate Valve: Features a grooved wedge that tolerates thermal expansion and misalignment; common in steam and hot water lines.
  • Split Wedge Gate Valve: Two-piece wedge that adjusts to seat irregularities; ideal in systems with temperature fluctuations.
  • Parallel Slide Gate Valve: Uses two flat discs and springs or pressure for sealing; minimizes wear and works well in high-pressure steam lines.
  • Knife Gate Valve: Sharp-edged disc cuts through slurries, pulp and viscous fluids; widely used in wastewater and mining.

Gate Valve Operation Methods

Gate valves can be operated in two main ways:

  1. Manual: A handwheel drives the stem, ideal for smaller valves and low-frequency operation. Rising stems provide visual indication, while non-rising stems conserve space.
  2. Automated: Electric, pneumatic or hydraulic actuators are used for frequent cycling, large diameters or high-pressure applications. Gearboxes are often added to reduce the torque requirement.

Selecting the right actuation method depends on valve size, operating pressure, accessibility and system automation needs.

Advantages and Disadvantages of Gate Valves

Application Area

Advantages

Disadvantages

General

1. Flow path minimizes pressure loss.
2. Bi-directional sealing with simple, proven design.

1. Not suitable for throttling; partial opening causes vibration and wear.

2. Slow to open/close due to multi-turn operation.

Oil & Gas Industry

1. Handles high pressures and temperatures reliably.
2. Robust for on/off isolation in pipelines and refineries.

1. Sediments can erode seats and gates.
2. Larger sizes are heavy and costlier than some alternatives.

Water / Wastewater

1. Provides minimal pressure drop for high-volume flow.
2. Suitable for large distribution and treatment systems.

1. Cannot regulate flow rate - only on/off.
2. Slower response can be a drawback in emergencies.

Power Generation

1. Excellent sealing and durability under steam/thermal conditions.
2. Capable of withstanding thermal expansion and pressure surges.

1. Frequent cycling accelerates seat/gate wear.
2. Not ideal for rapid isolation where immediate shutoff is needed.

Common Applications

Because of their isolation strength and durability, gate valves are used in:

  • Oil & Gas: Pipelines, refinery units and storage systems.
  • Water & Wastewater: Treatment plants, distribution pipelines and irrigation systems.
  • Power Plants: Steam and condensate lines.
  • Process Industries: Chemical, pulp & paper, mining and manufacturing.
  • Residential Plumbing: Shutoff points in branch lines.

Choosing the Right Gate Valve

Selecting the correct gate valve depends on:

  • Pressure and Temperature Rating: Always check the valve’s pressure–temperature chart (per API/ASME standards). A valve designed for ambient water service may fail in high-temperature steam or high-pressure oil pipelines.
  • Media Type: The nature of the fluid determines body and seat material. For clean water, cast iron or ductile iron is often sufficient; for corrosive chemicals, stainless steel or alloy trims are better; for abrasive slurry, knife gate designs are preferred to prevent clogging and premature wear.
  • End Connections: Choose between flanged, threaded or welded ends based on pipeline design and maintenance requirements. Flanged ends simplify removal and inspection; welded ends minimize leakage points in high-pressure systems.
  • Actuation Needs: Small valves are usually handwheel-operated, but larger valves may require gearboxes, electric actuators or hydraulic systems. Actuation should be selected not only for torque requirements but also for fail-safe operation, automation and frequency of use.
  • Space and Installation Constraints: Rising-stem valves need vertical clearance for the stem to extend, while non-rising stem designs save space and are better suited for underground or confined installations.
  • Standards and Certifications: Verify compliance with industry standards such as API 600 (steel gate valves), MSS SP-70 (cast iron) or API 602 (compact forged gate valves). For regulated industries, request test certificates, pressure test results and material traceability from the supplier.

By evaluating these factors carefully, you can ensure the gate valve you select will deliver safe, efficient and long-lasting performance in your system.

Conclusion

Gate valves combine simplicity with durability, making them one of the most reliable isolation devices in fluid handling systems. From water distribution to oil pipelines, they provide secure shutoff and minimal pressure drop when properly specified. For optimal performance, select the right type, material and actuation method for your system.

Specifying the right gate valve starts with understanding design, operation and materials. At Trupply, we provide a full range of cast iron, ductile iron and stainless-steel gate valves-helping engineers and procurement teams select solutions that balance safety, durability and cost efficiency.
