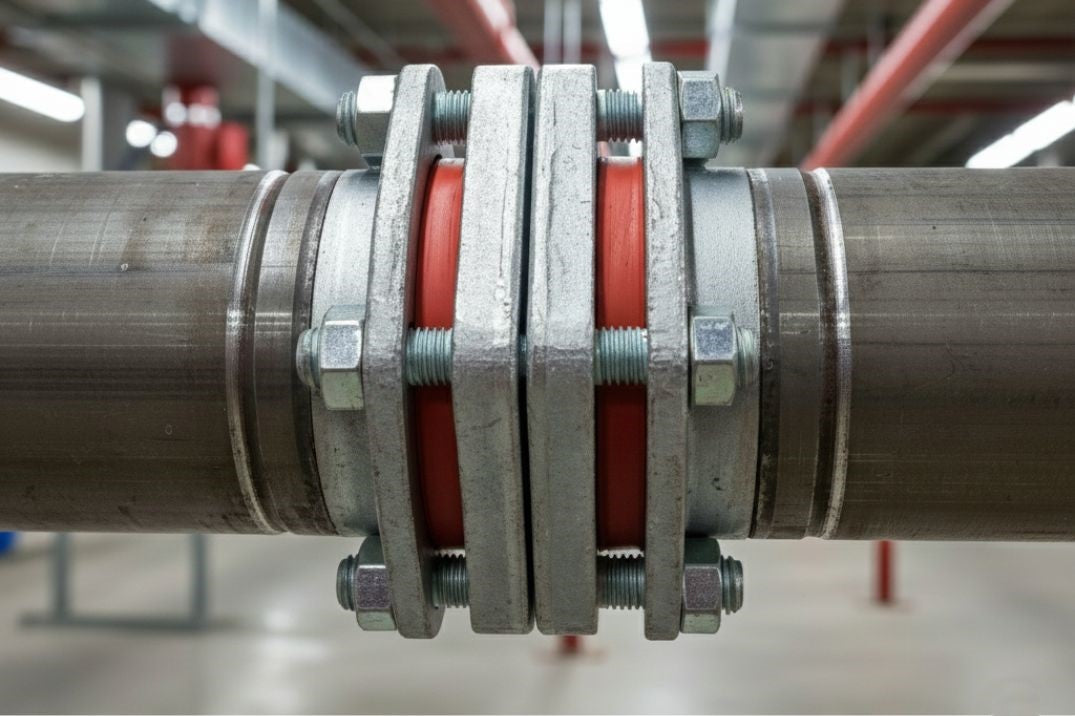

Grooved Fittings: Advantages, Disadvantages, and Applications

Advantages of Grooved Fittings

Easy Installation: Grooved fittings boast a hassle-free installation process, devoid of welding, flanges, or threading requirements. This streamlined installation reduces both time and costs, rendering grooved fittings an appealing choice for numerous piping applications.

Versatility: These fittings exhibit remarkable adaptability, accommodating pipes crafted from various materials such as steel, PVC, copper, and ductile iron. This versatility enhances their utility across piping systems employing diverse pipe materials.

High-pressure Rating: Modern grooved fittings are engineered to handle demanding operating conditions, with pressure ratings reaching up to 1000 psi depending on size and application. This makes them suitable for many industrial and utility piping systems.

Maintenance-free Operation: With no bolts, nuts, or gaskets necessitating regular upkeep, grooved fittings offer a maintenance-free solution. This translates to significant time and cost savings over the long term.

Fire Protection: Grooved fittings find extensive use in fire protection systems, owing to their secure seals and resilience against high temperatures and pressures, thus ensuring reliable performance in critical fire safety applications.

Easy Disassembly: Featuring straightforward disassembly and reassembly procedures, grooved fittings facilitate seamless maintenance activities, making them an attractive choice for applications requiring periodic upkeep.

Disadvantages of Grooved Fittings

Cost: Compared to welded or threaded joints, grooved fittings can have a higher upfront material cost. However, reduced labor time and faster installation often offset this expense over the life of the system.

Limited Movement: Most grooved couplings create rigid connections, which may restrict pipe movement. In applications requiring flexibility, specialized flexible grooved couplings may be required.

Material Compatibility: Grooved fittings may not be suitable for highly abrasive or corrosive media unless appropriate materials and coatings are selected. Improper material selection can lead to premature wear of grooves and gaskets.

Sensitivity to Installation Quality: Improper grooving, misalignment, or over-tightening can damage the coupling or gasket, leading to leaks. Correct groove dimensions and torque values are critical for long-term performance.

Comparison of Grooved Fittings, Welded Joints, and Flanged Joints

Choosing the right pipe connection method depends on installation time, maintenance requirements, and system flexibility. The table below compares grooved fittings, welded joints, and flanged joints across key performance parameters.

• Grooved fittings significantly reduce installation time compared to welded joints
• Welded joints require skilled labor and permanent connections
• Flanged joints offer accessibility but require more space and hardware

Applications of Grooved Fittings

Grooved fittings are used across a broad range of industries and piping systems, including:

• Fire Protection Systems
• HVAC Installations
• Water and Wastewater Treatment Plants
• Industrial Settings such as oil and gas, chemical processing, and mining

Their ability to support fast installation and system reliability makes them especially valuable in large-scale projects.

Materials Used for Grooved Fittings

Grooved fittings are manufactured from a range of materials, including:

• Ductile Iron: prized for its strength, durability, and corrosion resistance
• Stainless Steel: known for its corrosion resistance and strength, commonly used in demanding environments
• Carbon Steel: cost-effective option with robust durability, albeit susceptible to corrosion without proper coating
• PVC: lightweight, corrosion-resistant material ideal for water and wastewater treatment applications
• Copper: renowned for high thermal conductivity and corrosion resistance, popular in HVAC and plumbing installations

Material selection should consider pressure, temperature, media type, and environmental conditions.

Conclusion

Despite certain limitations, grooved fittings remain a favored choice for piping applications, owing to their secure seals, easy installation, and versatile compatibility with various materials. By carefully considering the application requirements, material compatibility, and installation procedures, grooved fittings can provide a reliable and cost-effective solution for diverse piping needs. Whether for fire protection, HVAC systems, or industrial operations, grooved fittings offer a dependable means of ensuring efficient and leak-proof piping systems.

FAQs

1. When should grooved fittings be avoided in piping systems?

Grooved fittings should be avoided in applications involving extreme vibration, highly abrasive media, or severe chemical corrosion unless specially designed couplings and coatings are used. In such cases, welded or lined piping systems may offer better long-term durability.

2. Do grooved couplings allow pipe movement or expansion?

Yes, certain grooved couplings are designed to accommodate limited axial movement, angular deflection, and thermal expansion. This makes grooved pipe fittings suitable for systems exposed to temperature changes or minor ground movement.

3. How does long-term cost compare between grooved and welded piping systems?

While grooved fittings may have a higher initial material cost, they often reduce overall project cost due to faster installation, lower labor requirements, minimal shutdown time, and simplified maintenance over the system’s lifespan.

4. Can grooved pipe fittings be reused after disassembly?

Yes, one major advantage of grooved pipe fittings is reusability. Couplings and fittings can be removed, inspected, and reinstalled, provided they are not damaged—making them ideal for temporary lines, plant expansions, or system modifications.
