Cam-Lock Joint Restraints on CS Pipe - Model 111

Product Description
Nominal Size (in)
O.D (in)
$ 182.50
Maximum quantity available reached.

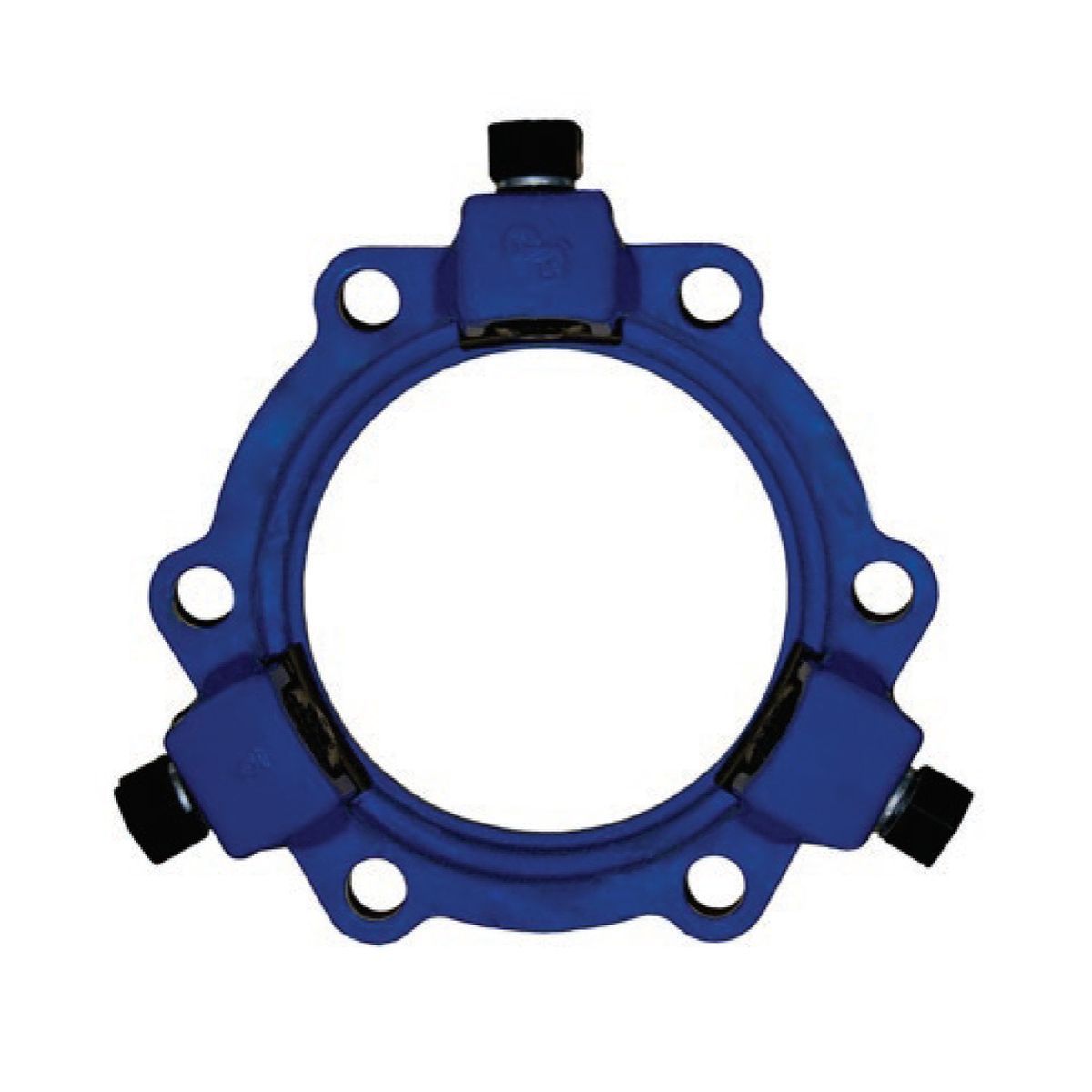

Cam-Lock Joint Restraints for MJ Fittings on Carbon Steel Pipe with Multi-Seal MJ Gasket

Product Features:
Cam-Locks are mechanical joint restraint glands with multiple independent single-tooth, cam-action wedges designed to restrain a fitting on a piece of pipe.
Application: Restraining pipe ends in mechanical joint fittings.
Key Features:
• Fewer wedges for time-saving installations
• Breakaway nuts twist off at approximately 45-60 ft.-lbs., leaving cam engaged with the pipe.
• Lower torque requirement to fully actuate bolts
• Multi-Seal MJ Gasket available in 4"-12." Fits IPS or DI sized pipe.
• Corrosion resistant
• Secondary hex shank for easy removal and re-installation
Materials Specifications (subject to change):
GLAND: 65-45-12 Ductile Iron (ASTM A536)
WEDGES: Single Tooth Ductile Iron, heat treated for Ductile Iron pipe applications
ACTUATING BOLTS: 60-40-18 Ductile Iron (ASTM A536)
BREAKAWAY NUTS: Carbon Steel
FINISH: Gland is Flexi-Coat® Epoxy per ANSI/AWWA C213. Wedges and Actuating Bolts are E-coated Epoxy.
Sku: 111-04500480-000
Vendor: Smith Blair

All Domestic products are melted and manufactured in USA.

All Dresser Products are domestically manufactured by GE / Dresser at the plant in Pennsylvania, USA.

All Import Valves, Hammer Unions, Y-Strainers & Frac Tank Supplies are assembled and tested in USA with components made in China

All Import Buttweld, Socketweld & Threaded Fittings are made in China/Taiwan/India

All Import Flanges are made in China/Taiwan/India

All materials are ASTM / ASME equivalent. Visit our Knowledge Central page for more information on material grades, material chemistry and ASTM, ASME & ANSI myth.

If you have any question, call 281.516.8100 or email sales@trupply.com.
